Location Of Components

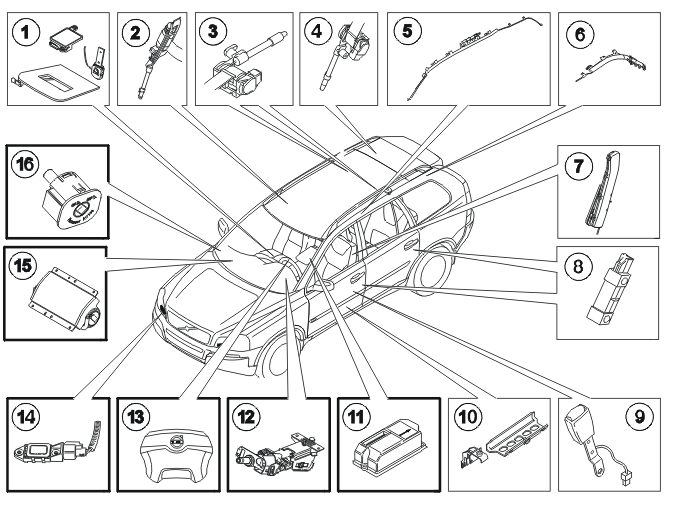

Fig 1: Identifying Location Of Components
GLL146660Courtesy of VOLVO CARS CORPORATION
Position  Description
1 Occupant weight sensor (OWS) (only USA/CDN).
2 Front left and right seat belt tensioners.
3 Seat belt tensioner left, right and rear center.
4 Seat belt tensioner left and right, third row (7 seater cars only).
5 Inflatable curtains, left and right.
6 Inflatable curtain left and right rear (7 seater cars only).
7 Side impact airbags, front left and right.
8 Side impact sensors, left and right, B- and C-posts.
9 Seat belt buckles, front left and right.
10 Seat position sensors, front left and right (only USA/CDN).
11 Supplemental restraint system module (SRS).
12 Adaptive steering column (Only USA/CDN).
13 Driver's airbag.
14 Front left and right impact sensors.
15 Passenger airbag.
16 Passenger airbag switch on/off (not USA/CDN).
