Antenna, GPS, Replacing: Removal

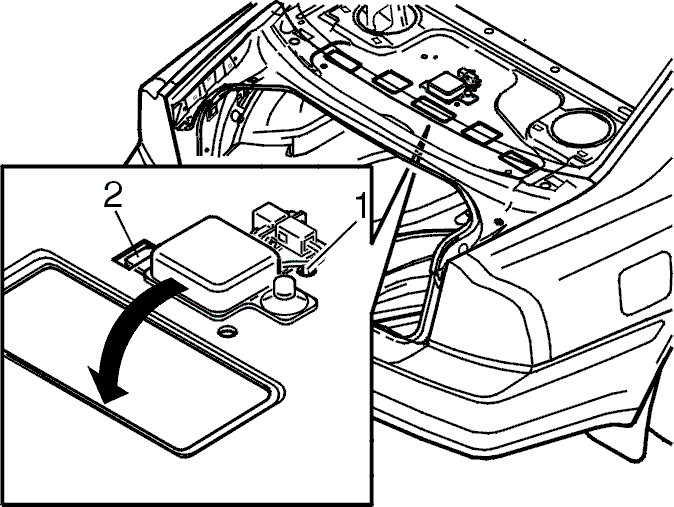

Fig 1: Antenna Clip

Courtesy of VOLVO CARS CORPORATION

HINT: The GPS antenna is located underneath the parcel shelf. The GPS antenna can be removed through the cargo compartment.

• Press the clip (1) up
• Insert a hand through one of the holes in the panel. Unhook the lip (2) which is securing the antenna
• Remove the antenna through the hole
• Disconnect the connector.
