Final Check

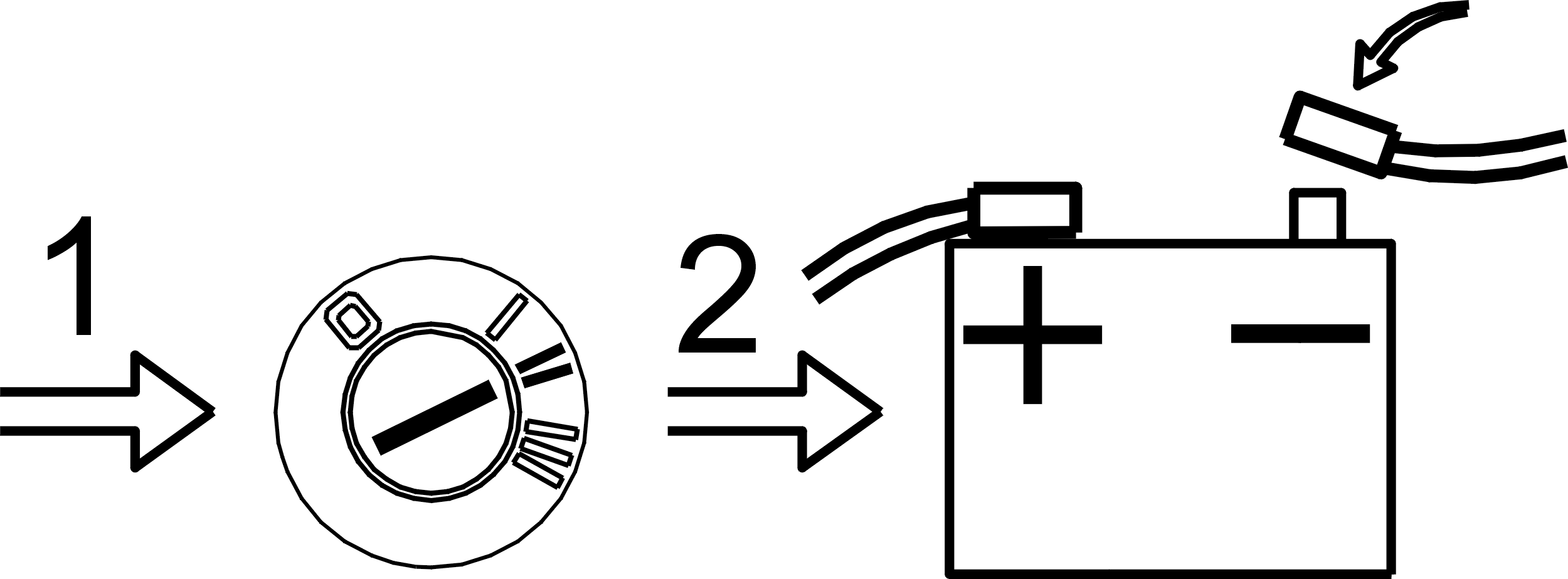

Fig 1: Connecting Battery Negative Lead

Courtesy of VOLVO CARS CORPORATION

WARNING:

The ignition must not be switched on when the SRS ignition cable connector is being removed or installed.

When all components have been installed:

switch ignition to position II
reconnect the battery negative lead.

NOTE:

Check that the SRS indicator lamp is not defective by turning the key to position II. The SRS indicator lamp should light and go out after approximately seven seconds.

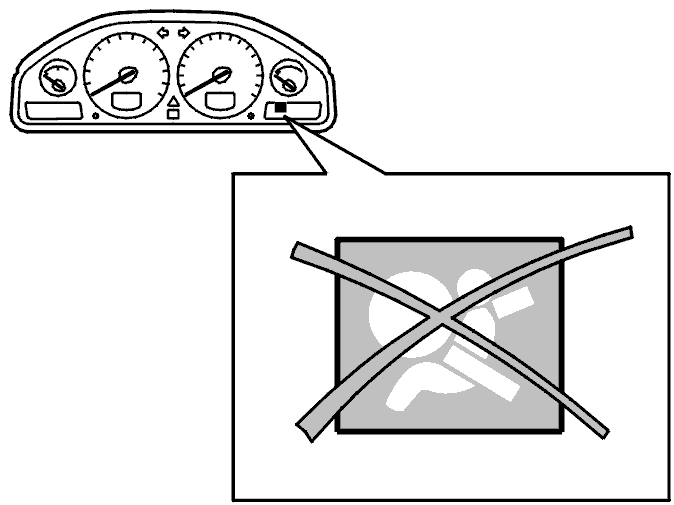

Fig 2: Identifying SRS Indicator Lamp

Courtesy of VOLVO CARS CORPORATION

Check that the SRS indicator lamp is not lit constantly. If the lamp is lit constantly use the data link connector (DLC) or VCT2000 to trace the fault.
