Component Location, Climate Control Module (CCM) [2011-2018]
COMPONENT LOCATION, CLIMATE CONTROL MODULE (CCM)
 Courtesy of VOLVO CARS CORPORATION
|

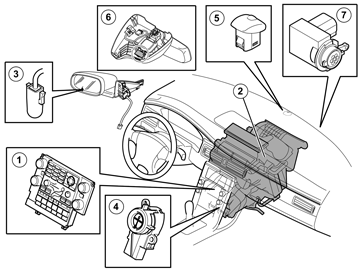

| Pos. |
Component |
| 1 |
Climate Control Module (CCM) |
| 2 |
Climate units |
| 3 |
Outside temperature sensor |
| 4 |
Interior temperature sensor |
| 5 |
Sun sensor |
| 6 |
Moisture sensor. Depending on vehicle version located in rearview mirror or under casing in roof, by the windscreen. |
| 7 |
Air quality sensor (AQS) |
 Courtesy of VOLVO CARS CORPORATION
|

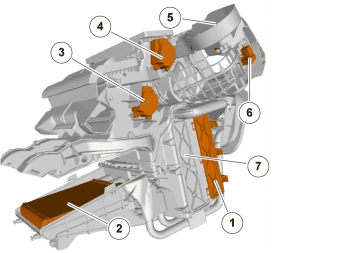

| Pos. |
Component |
| 1 |
Pollen filter |
| 2 |
Heat exchanger |
| 3 |
Damper motor, temperature control, right |
| 4 |
Damper motor, defroster |
| 5 |
Damper motor, recirculation |
| 6 |
Air quality sensor (AQS) |
| 7 |
Evaporator |
 Courtesy of VOLVO CARS CORPORATION
|

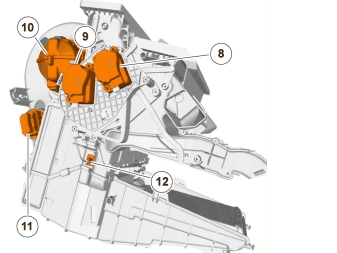

| Pos. |
Component |
| 8 |
Damper motor, temperature control, left |
| 9 |
Damper motor, air distribution |
| 10 |
Fan motor |
| 11 |
Fan resistor |
| 12 |
Temperature sensor, evaporator |
