Component Location, Headlamp Control Module (HCM) [2007-2011]

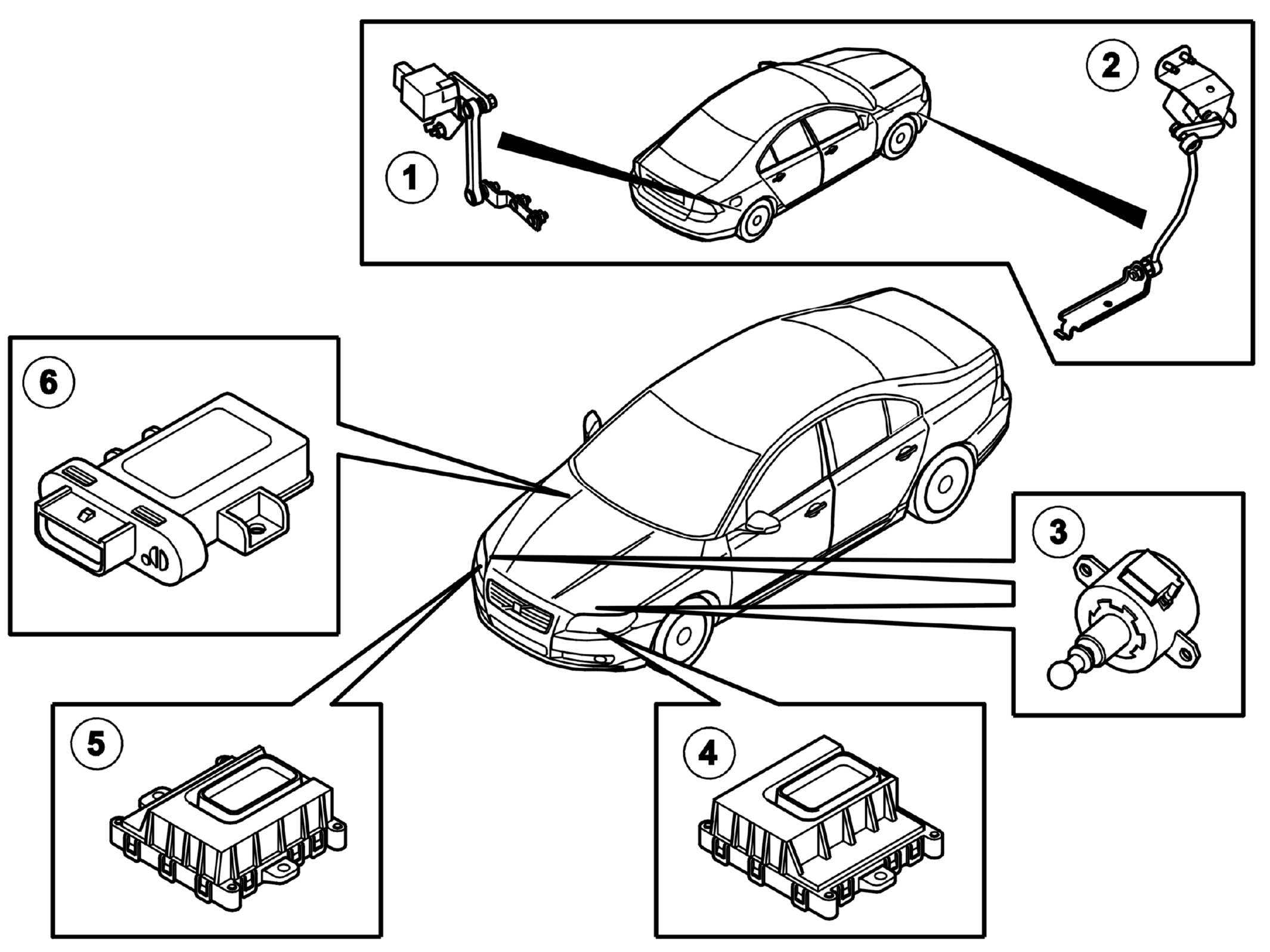

GLL153866Courtesy of VOLVO CARS CORPORATION

Overview

  1. Rear position sensor
  2. Front position sensor
  3. Motors for headlamp levelling (not active headlamps)
  4. Left headlamp control unit (LHCU)
  5. Right headlamp control unit (RHCU)
  6. Headlamp Control Module (HCM)
