Collision Warning Control Module [2007]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

GLL154367Courtesy of VOLVO CARS CORPORATION

Remove glove compartment, refer to: GLOVE COMPARTMENT

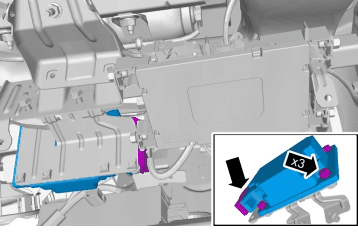

GLL154845Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure that the component terminals are not bent or damaged.

Torque:  M6, 10Nm
