Component Location, Central Electronic Module (CEM) [2007]

Courtesy of VOLVO CARS CORPORATION

Central electronic module (CEM)

1. Central electronic module (CEM)

Courtesy of VOLVO CARS CORPORATION

Lighting exterior, front

1. Low beam
2. High beam
3. Parking lamps
4. Turn signal lamps
5. Side marker lights
6. Turn signal lamps, door mirrors
7. Local lighting
8. Fog lamps.

Courtesy of VOLVO CARS CORPORATION

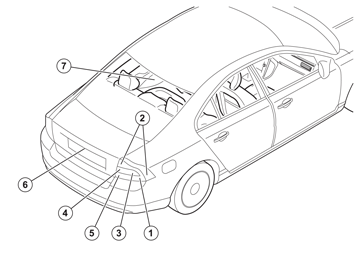

Lighting exterior, rear

1. Stop lamps
2. Tail lamps
3. Turn signal lamps
4. Back-up (reversing) lamps
5. Fog tail lamps
6. License plate lighting
7. High level brake light.

Courtesy of VOLVO CARS CORPORATION

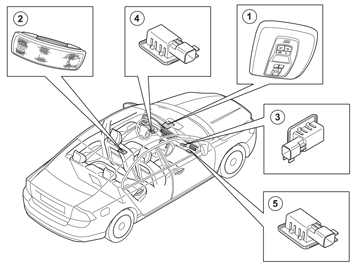

Inner lighting

1. Front interior lighting
2. Rear interior lighting
3. Lighting glove compartment
4. Courtesy lighting left
5. Courtesy lighting right.

Courtesy of VOLVO CARS CORPORATION

Warning and indicator lamps

1. Seat belt reminder
2. PAD lamp
3. MIL lamp
4. Alarm diode
5. Indication reduced alarm
6. Indicator lamp hazard warning signal flashers
7. Indicator lamp fog lamp front
8. Indicator lamp fog lamp rear.

Courtesy of VOLVO CARS CORPORATION

Sensors

1. Fuel level
2. Clutch pedal switch
3. Clutch pedal position sensor
4. Accelerator pedal (AP) position sensor
5. Twilight sensor
6. Sun sensor
7. Diagnostic socket, brake lamp (BDS) (3/284)
8. Brake lamp switch (BLS) (3/9)

Courtesy of VOLVO CARS CORPORATION

LIN nodes

1. Wiper motor module (WMM)
2. Rain sensor module (RSM)
3. Heartbeat sensor
4. Movement detector
5. Siren control module (SCM)
6. Remote control receiver
7. Steering column lock module (SCL)
8. Start control module (SCU)
9. Cruise control buttons on steering wheel
10. Light switch module (LSM)

Courtesy of VOLVO CARS CORPORATION

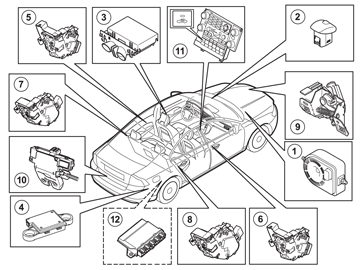

Alarm components

1. Siren control module (SCM)
2. Alarm diode
3. Movement detector
4. Heartbeat sensor
5. Contact breaker in left front lock unit
6. Contact breaker in right front lock unit
7. Contact breaker in left rear lock unit
8. Contact breaker in right rear lock unit
9. Switch hood
10. Switch trunk lid / tailgate
11. Switch reduced alarm.
12. Keyless vehicle module (KVM) (if installed)
