Connector Control Module Extra Safety System [2007-2016]: Notes

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES
NOTE:

The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

SPECIAL TOOLS

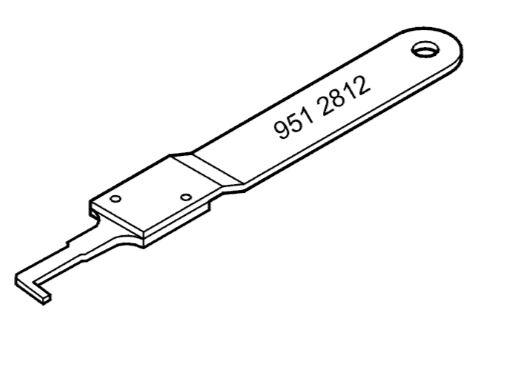

G00586881Courtesy of VOLVO CARS CORPORATION
 951 2812 Terminal removal tool
Tool number:  951 2812-0
Tool description:  Terminal removal tool
Tool boards:  39

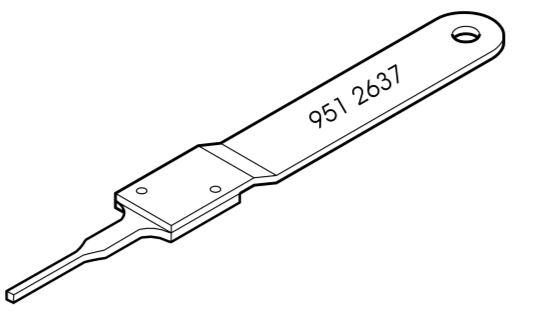

G00586882Courtesy of VOLVO CARS CORPORATION
 951 2637 Terminal removal tool
Tool number:  951 2637-1
Tool description:  Terminal removal tool (Color code: Violet)
Tool boards:  39
