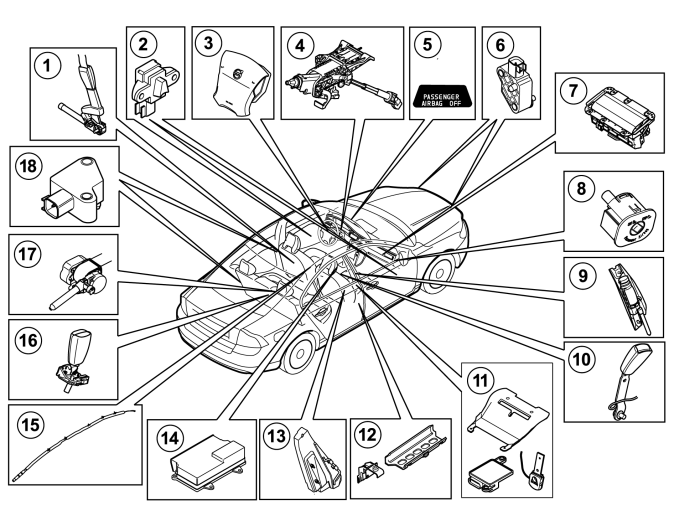

Component Location, Supplemental Restraint System Module (SRS) [2007]
| Pos. | Description | Pos. | Description |
| 1 | Driver's lap seat belt tensioner (only certain markets). | 10 | Seat belt buckle, front left and right. |
| 2 | Side impact sensor (pressure sensor) left and right front door (only USA/CAN). | 11 | Occupant weight sensor (OWS) (only USA/CAN). |
| 3 | Driver airbag. | 12 | Seat position sensors, driver's and passenger (only USA/CAN). |
| 4 | Adaptive steering column (Only USA/CAN). | 13 | Side airbag, front left and right. |
| 5 | Passenger airbag warning lamp (PAD). | 14 | Supplemental restraint system module (SRS). |
| 6 | Front left and right impact sensors. | 15 | Inflatable curtains, left and right. |
| 7 | Front passenger airbag. | 16 | Seat belt buckle, left-hand rear, center rear and right-hand rear. |
| 8 | Front passenger airbag switch (not USA/CAN). | 17 | Seat belt tensioner, left-hand rear, center rear and right-hand rear. |
| 9 | Seat belt tensioner, driver's and passenger front. Adaptive seatbelt force limiter, driver's and passenger front (only USA/CDN). Seat belt (inertia) reel sensor, driver's and passenger front (only USA/CDN). |
18 | Side impact sensors, left and right, B- and C-posts. |
