General Information
Parking assistance camera wide angle front increases the driver's visual field and facilitates driving through intersections and tight exits with poor visibility to both sides. This is an excellent supplement to traffic mirrors at critical intersections as well as areas with many buildings and dense vegetation. The camera has a discrete placement in the grille.

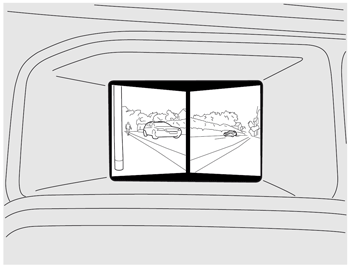

The system consists of a wide angle camera that covers a vision field of 180 degrees to the sides and allows the driver to see around corners, past buildings and hedgerows at intersection, for example. The camera view is shown on the screen in the Infotainment control module (ICM).
Parking assistance camera wide angle front communicates with the Infotainment control module (ICM) via composite video signal (CVBS) which in turn communicates with the Climate control module (CCM) via CAN.
Parking assistance camera wide angle front has no diagnostics of its own, trouble codes can only be set in the Infotainment control module (ICM) during a self-test.
