Battery, Telematics Module (TEM) [2016]: Removal

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

Remove the Telematics Module (TEM), refer to: TELEMATICS MODULE

Courtesy of VOLVO CARS CORPORATION

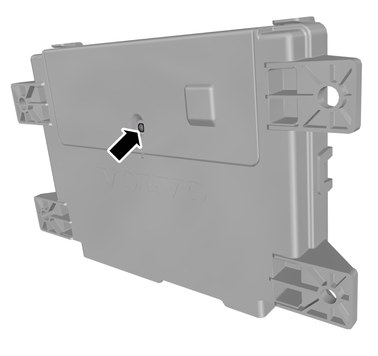

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

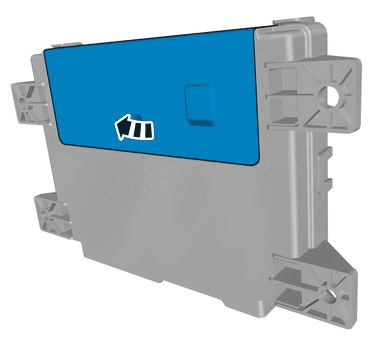

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

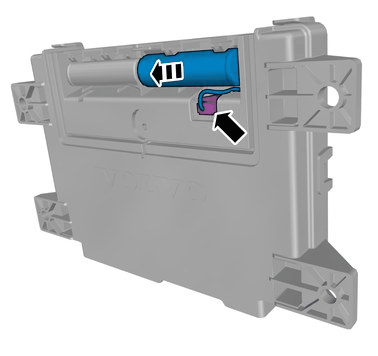

Disconnect the connector.

Remove the marked part.
