Telematics Module (TEM) [2016-2017]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

NOTE:

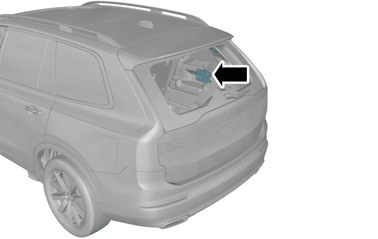

Orientation view

Remove right side panel cargo compartment, refer to: SIDE PANEL LOADSPACE

Courtesy of VOLVO CARS CORPORATION

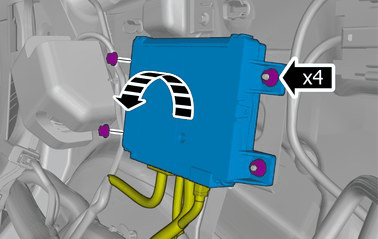

Remove the nuts.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

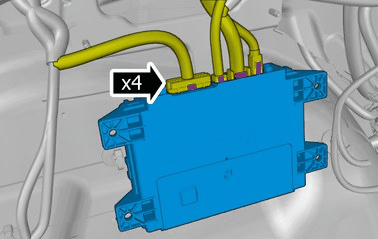

Disconnect the connectors.
