Foot Movement Detection Module (FMDM) [2016-2020]: Removal

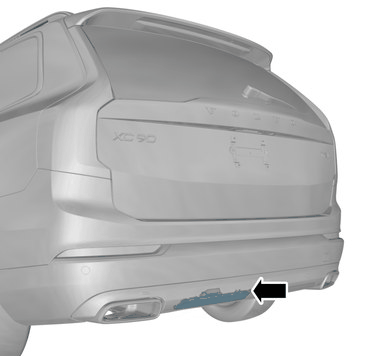

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

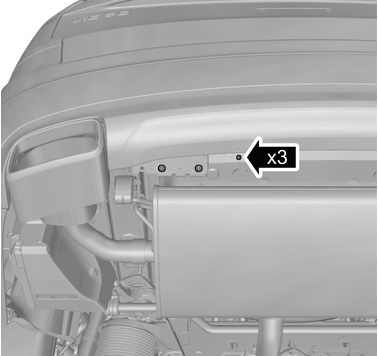

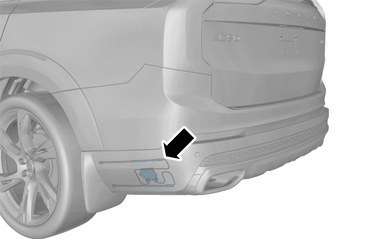

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

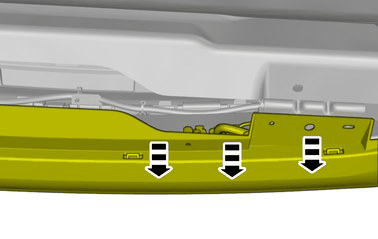

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

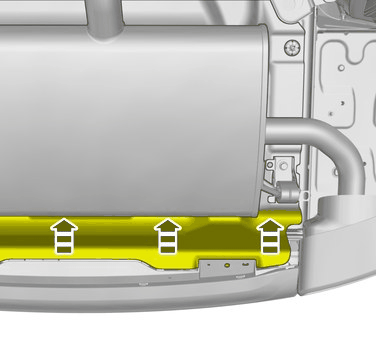

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

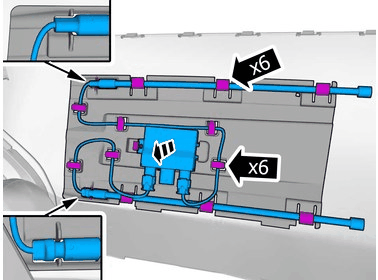

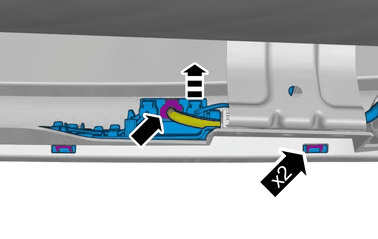

Disconnect the connector.

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

VEHICLES WITH SKIDPLATE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

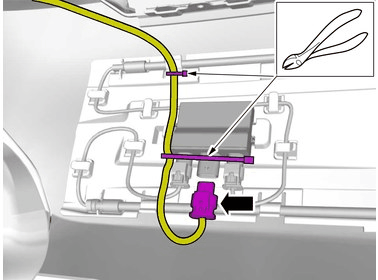

Disconnect the connector.

Remove the fasteners.

Courtesy of VOLVO CARS CORPORATION

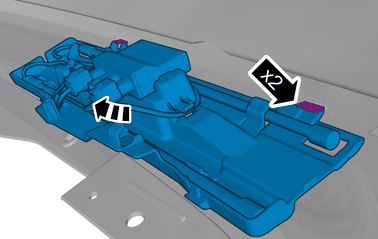

Release the catches.

Remove the marked part.
