Check Engine Light, ECM-P017100 (TJ 31120)

WARNING: This page is about the XC90 T5 Inscription, AWD, which is a different variant/trim than selected.
Publication date: 2016-04-06
Reference number: TJ 31120

CHECK ENGINE LIGHT IS ON, ECM-P017100

CHECK ENGINE LIGHT IS ON, ECM-P017100

TECHNICAL SERVICE BULLETIN

Reference Number(s): TJ 31120, Date of Issue:  April 6, 2016
VOLVO: 2016 XC90
SECTION: Supercharger, Parts
GROUP: 2555

ATTACHMENT

ATTACHMENT

File Name File Size
TJI-491817-1_1_0_en-US.pdf 4.9993 MB
TJI-491817-2_1_0_en-US.pdf 5.7504 MB

VEHICLE TYPE

VEHICLE TYPE

Type Eng Eng Desc Sales Body Gear Steer Model Year Plant Chassis range Struc Week Range
256 A2 B4204T27         2016-2016   - 201505-201550
256 BA B1APHEV         2016-2016   - 201526-201550
256 BC B1BPHEV         2016-2016   - 201526-201550

CSC CUSTOMER SYMPTOM CODES

CSC CUSTOMER SYMPTOM CODES

Code Description
DL Warning lights and chimes/Malfunction Indicator Light ("Check engine" light) indication/no indication

VST OPERATION NUMBER

VST OPERATION NUMBER

VST Operation Number Description
31133-3 Isolation testing high voltage system
25233-2 Air leak inlet system check
98566-2 Gasket resonator replace acc. to TJ31120
31130-2 Battery drive, disconnect and connect

DTC DIAGNOSTIC TROUBLE CODES

DTC DIAGNOSTIC TROUBLE CODES

Control Module Code Fault Type
ECM P017100 Intermittent

Rows beginning with * are modified

NOTE: If using a printed copy of this Technical Journal, first check for the latest online version.

TEXT

- - -

DESCRIPTION

* VSTG OP no. added.

* Text added under service. "VSTG OP no. See attachment "

* Engine Variant added

ECM=Engine Control Module

VIDA= Vehicle Information and Diagnostics for Aftersales

VSTG= Volvo Standard Time Guide

If the "check engine" indicator is on and DTC ECM-P017100 is posted, please follow advice under SERVICE.

SERVICE

Check for air leak at the supercharger resonator.

Use Leak detector (981 4118) listed in VIDA to test air intake system. If leakage is confirmed at supercharger resonator, replace sealing as in attachment.

VSTG OP no. See attachment :

TJI-491817-1 for vehicles with engine B4204T28 (PHEV)

TJI-491817-2 for vehicles with engine B4204T27

VEHICLE REPORT

Yes, please submit a Vehicle Report if the service solution described in this TJ has no effect. Use concern area "Vehicle Report" and sub concern area "Support not needed", use function group 2555.

TJ INSTRUCTION VCC-491817-1 INLET RESONATOR GASKET

ISSUE DATE REASON

Issue Date Reason
1 2015-12 First issue

Affected vehicles

AFFECTED VEHICLES

Model year Model Engine
2016 XC90 (16-) B4204T28, T35

Materials

MATERIALS

Materials Qty. Part No. Notes
Gasket 1.0 31439814

Removal

NOTE: Removal steps in this procedure may contain installation details.
G10364099

Color symbols

NOTE: This color chart displays (in colour print and electronic version) the importance of the different colors used in the images of the method steps.
  1. Used for focused component, the component with which you will do something.
  2. Used as extra colors when you need to show or differentiate additional parts.
  3. Used for attachments that are to be removed/installed. May be screws, clips, connectors, etc.
  4. Used when the component is not fully removed from the vehicle but only hung to the side.
  5. Used for standard tools and special tools.
  6. Used as background color for vehicle components.
    G10364100

Check

Carry out intake system, check, refer to:

Cleaning, Inspection and Adjustment

2 - Engine with mountings and equipment

25 - Intake and exhaust system

251 - inlet and exhaust manifolds

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove Inverter Generator Module (IGM), refer to:

Removal, replacement and installation

3 - Electrical system

32 - Alternator and regulator

323 - electric converter, high voltage

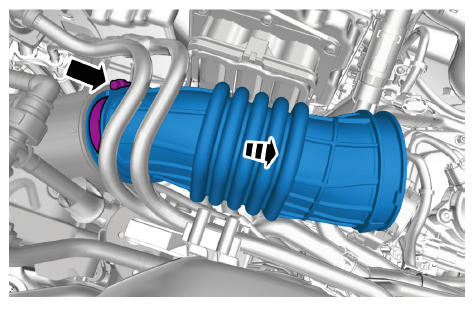

Loosen the hose clamp.

Remove the marked part.

G10364101

Release the locks.

Undo the hose from the connection.

Fold marked part to one side.

G10364102
WARNING: Be prepared to collect escaping fluid.

Release the locks.

Undo the hose from the connection.

Fold marked part to one side.

G10364103

Release the locks.

Undo the hoses from the connections.

Fold marked part to one side.

G10364104
WARNING: Be prepared to collect escaping fluid.

Release the lock.

Undo the hose from the connection.

Fold marked part to one side.

G10364105

Release the lock.

Undo the hose from the connection.

Fold marked part to one side.

G10364106

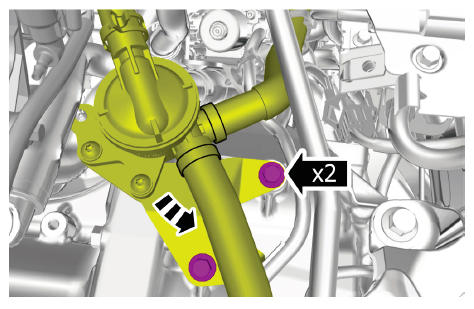

Remove the screws.

Torque:

M8, 24 Nm

G10364107
NOTE: The screws may be difficult to access.

Remove the screws.

G10364108

Remove the screws.

Remove the marked part.

G10364109
NOTE: The screws may be difficult to access.

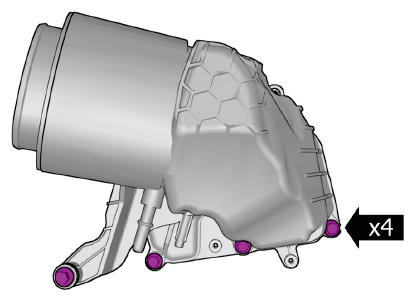

Remove the screws.

Torque:

M6, 10 Nm

G10364110

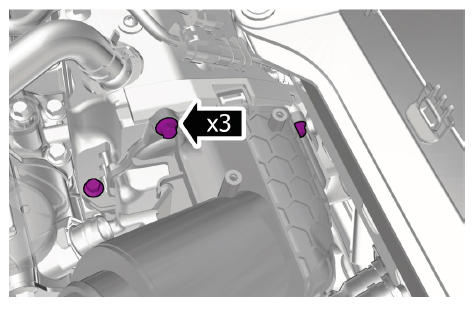

Remove the screws.

Torque:

M6, 10 Nm

G10364111

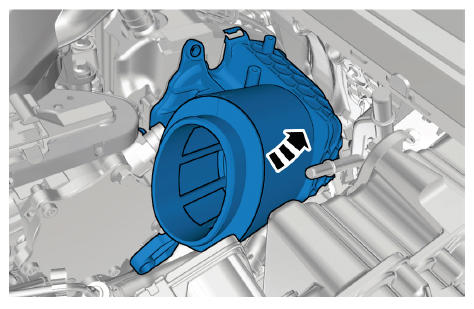

Remove the marked part.

Hint: It may be necessary to twist or turn the component.

G10364112

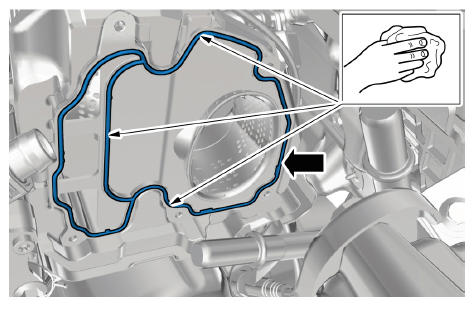

CAUTION: Make sure that the surface is clean and free of foreign material.
NOTE: Make sure that the seal is correctly located.
G10364113

Installation

To install, reverse the removal procedure.

TJ INSTRUCTION VCC-491817-2 INLET RESONATOR GASKET

ISSUE DATE REASON

Issue Date Reason
1 2015-12 First issue

Affected vehicles

AFFECTED VEHICLES

Model year Model Engine
2016 XC90 (16-) B4204T27

Materials

MATERIALS

Materials Qty. Part No. Notes
Gasket 1.0 31439814

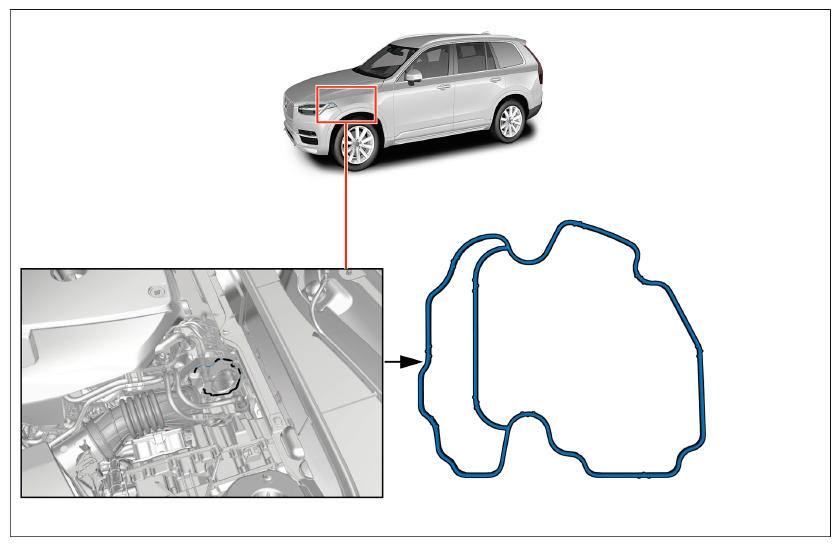

Removal

NOTE: Removal steps in this procedure may contain installation details.
G10364114

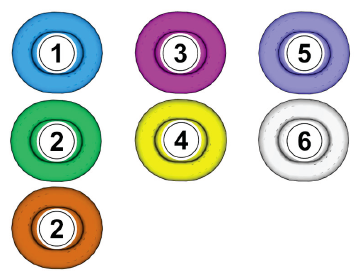

Color symbols

NOTE: This colour chart displays (in colour print and electronic version) the importance of the different colors used in the images of the method steps.
  1. Used for focused component, the component with which you will do something.
  2. Used as extra colors when you need to show or differentiate additional parts.
  3. Used for attachments that are to be removed/installed. May be screws, clips, connectors, etc.
  4. Used when the component is not fully removed from the vehicle but only hung to the side.
  5. Used for standard tools and special tools.
  6. Used as background color for vehicle components.
    G10364115

Check

Carry out intake system, check, refer to:

Cleaning, Inspection and Adjustment

2 - Engine with mountings and equipment

25 - Intake and exhaust system

251 - inlet and exhaust manifolds

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove auxiliary battery, refer to:

Removal, replacement and installation

3 - Electrical system

31 - Battery and mounting

311 - battery

Remove the battery control switch module bcsm, refer to:

Removal, replacement and installation

3 - Electrical system

31 - Battery and mounting

311 - battery

Remove the cowl panel cover, refer to:

Removal, replacement and installation

8 - Body and interior

82 - Bonnet (Hood), front end, wings, door sill

823 - radiator grille

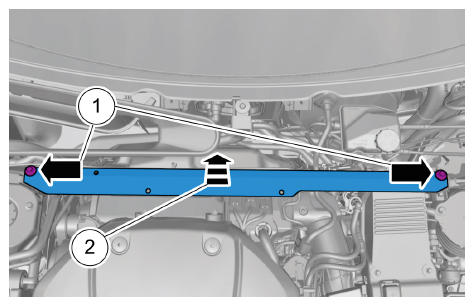

  1. Remove the screws.
  2. Remove the marked part.
  3. Torque:

    M8, 24 Nm

    G10364116

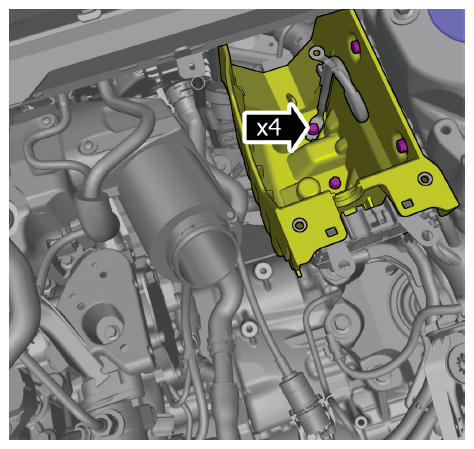

Remove the screws.

Torque:

M5, 5 Nm

G10364117

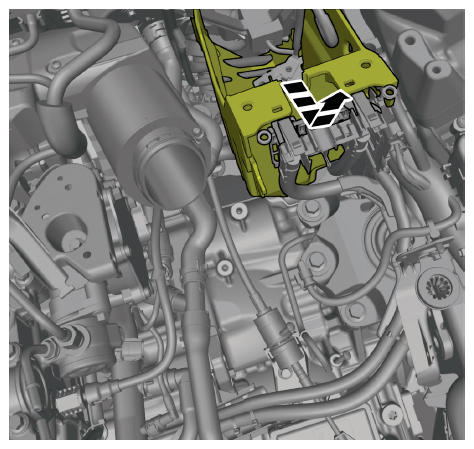

Fold marked part to one side.

G10364118

Loosen the hose clamp.

Remove the marked part.

G10364119

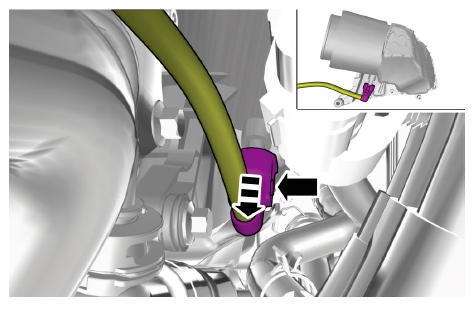

Release the locks.

Undo the hose from the connection.

Fold marked part to one side.

G10364120
WARNING: Be prepared to collect escaping fluid.

Release the locks.

Undo the hose from the connection.

Fold marked part to one side.

G10364121

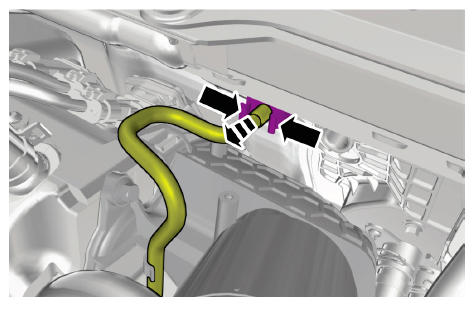

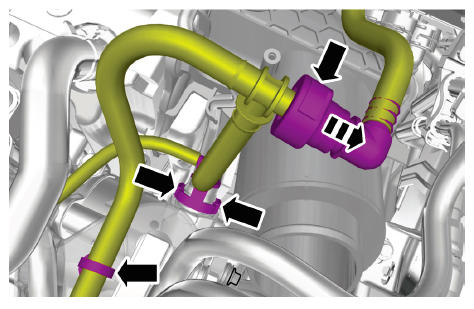

Release the locks.

Undo the hoses from the connections.

Fold marked part to one side.

G10364122
WARNING: Be prepared to collect escaping fluid.

Release the lock.

Undo the hose from the connection.

Fold marked part to one side.

G10364123

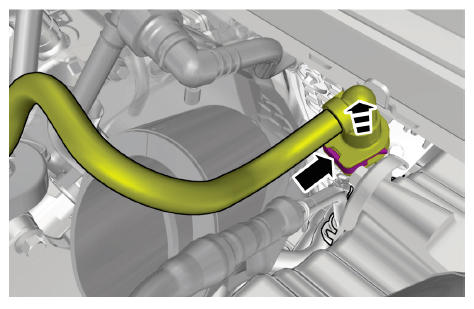

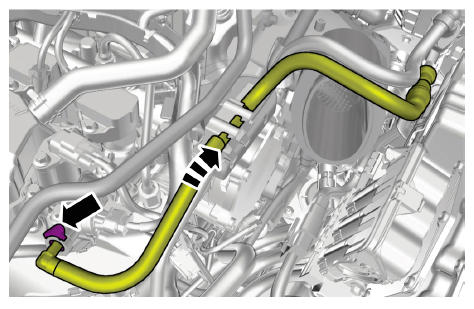

Release the lock.

Undo the hose from the connection.

Fold marked part to one side.

G10364124

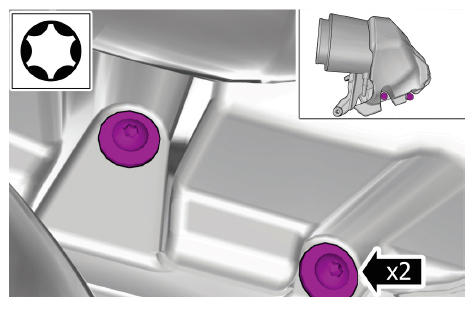

NOTE: The screws may be difficult to access.

Remove the screws.

G10364125

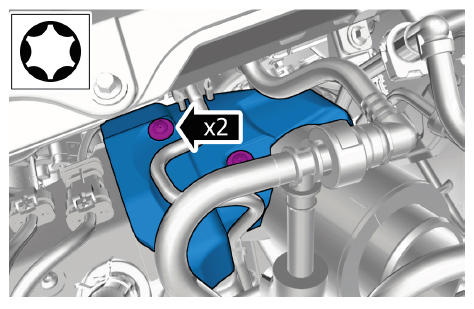

Remove the screws.

Remove the marked part.

G10364126
NOTE: The screws may be difficult to access.

Remove the screws.

Torque:

M6, 10 Nm

G10364127

Remove the screws.

Torque:

M6, 10 Nm

G10364128

Remove the marked part.

Hint: It may be necessary to twist or turn the component.

G10364129
CAUTION: Make sure that the surface is clean and free of foreign material.
NOTE: Make sure that the seal is correctly located.
G10364130

Installation

To install, reverse the removal procedure.
