Trailer Module (TRM) [2017 | 2016, B4204T11; B5254T12]: Removal

Courtesy of VOLVO CARS CORPORATION

Remove left side, side panel cargo space, refer to: SIDE PANEL LOADSPACE

Courtesy of VOLVO CARS CORPORATION

NOTE:

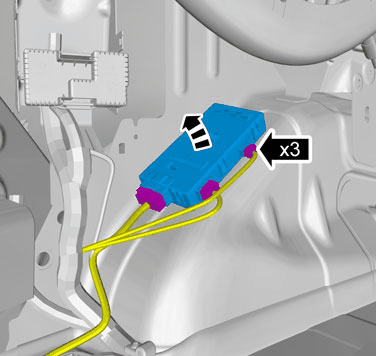

Make sure that the component terminals are not bent or damaged.

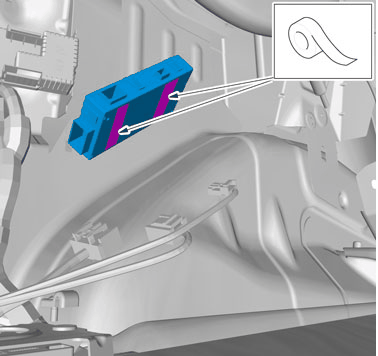

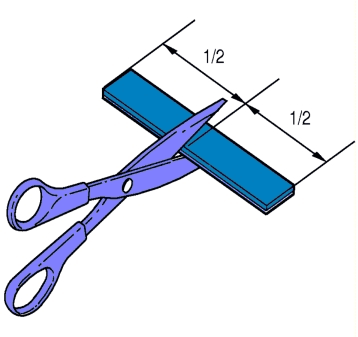

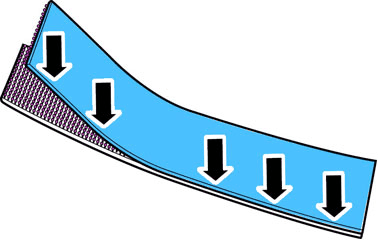

Follow the instructions regarding components with double-sided adhesive tape.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION
