Fuel Pump And Level Sensor Unit [2016-2017, B4204T11, TG-81SC | 2017, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Follow instructions about safety information gasoline-fuel system, refer to: SAFETY INFORMATION GASOLINE - FUEL SYSTEM
Remove fuel tank, refer to: FUEL TANK
Torque: Fuel pump to tank, 85Nm
CAUTION:

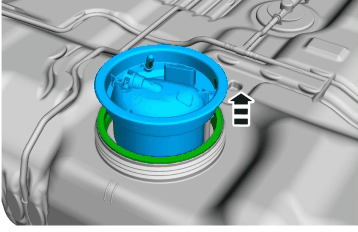

Take extra care not to damage the fuel tank level sensor float and arm.
