Rear Parking Sensors

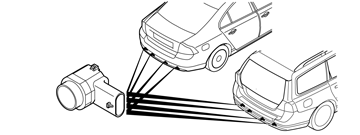

There are 4 rear sensors located in the rear bumper. The sensors can detect objects at a distance of about 1.5 meters (5 feet) directly behind the vehicle.
The smallest objects which can be detected are:
- plastic tube with a height of at least 1, 000 mm and a diameter of at least 75 mm (ISO standard).
- smaller objects can be identified if the shape and reflective surface are sufficiently large.
Rear parking assistance is active when the ignition switch is in position II, the gear selector is in reverse (R) and there is no trailer electrically connected to the vehicle. Rear parking assistance disengages automatically when the gear selector is moved from reverse (R) to any other gear position or when a trailer is electrically connected to the vehicle. Parking assistance can also be engaged/disengaged manually using the switch on the panel of the Climate Control Module (CCM), on the condition that the gear lever is in the reverse (R) position.
