Foot Movement Detection Module (FMDM) [2017]: Removal

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

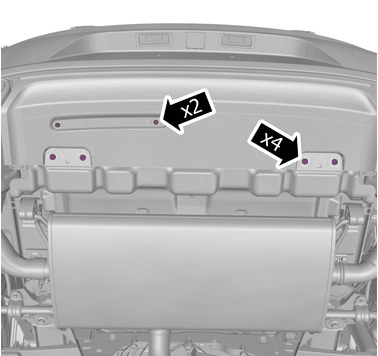

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

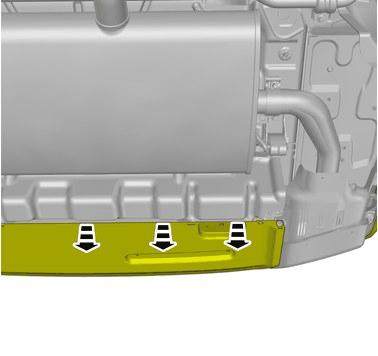

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Release the catches.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
