Trailer Module (TRM) [2017]: Removal

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Remove right side panel cargo compartment, refer to: SIDE PANEL LOADSPACE

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

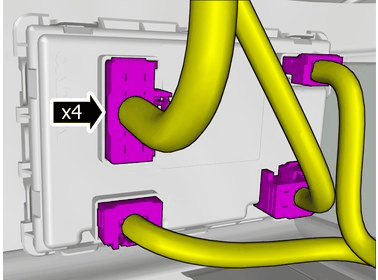

Disconnect the connectors.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

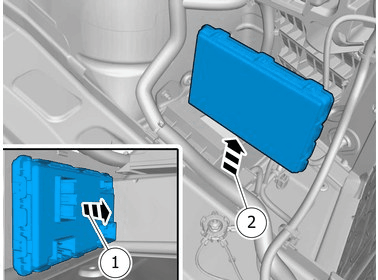

Loosen the marked detail/details.

Remove the marked part.
