Transmission Control Module (TCM) [2017, B4204T23, TG-81SC | 2017, B4204T27, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

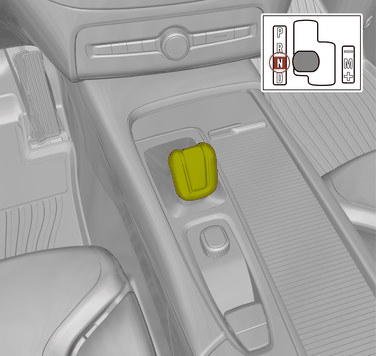

Make sure that the selector lever is in the neutral (N) position.

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Remove the air filter housing, refer to: AIR CLEANER HOUSING

Courtesy of VOLVO CARS CORPORATION

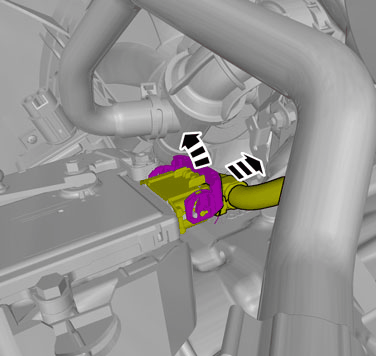

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

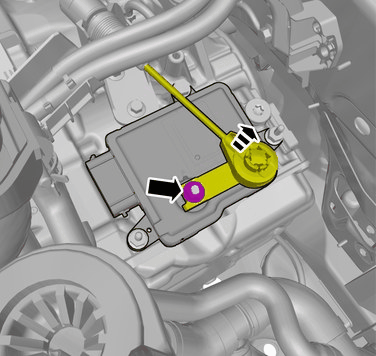

Remove the nut.

Fold marked part aside.

Torque: Gear selector mechanism (nut), 16Nm

Courtesy of VOLVO CARS CORPORATION

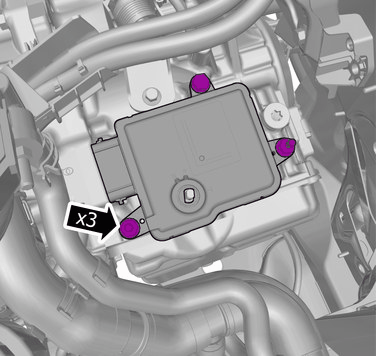

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully
