Window Control Switch Front [2014-2018]: Installation

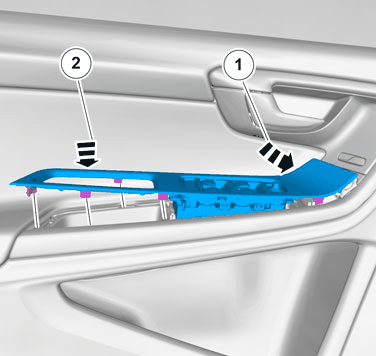

GLL174762Courtesy of VOLVO CARS CORPORATION
CAUTION:

Only use moderate force.

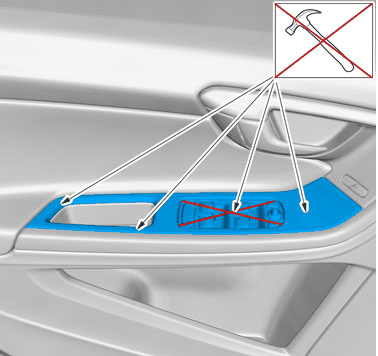

GLL174763Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that equal pressure is applied to the full length of the component.

CAUTION:

Take extra care when handling the component.

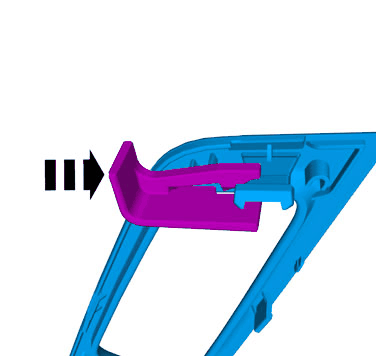

GLL174766Courtesy of VOLVO CARS CORPORATION

To install, reverse the removal procedure.
