Location Of Components, Transmission Control Module (TCM) [2014-2016, B5254T12; B6304T4, TF-80SC AWD | 2015-2016, B6304T5, TF-80SC AWD]

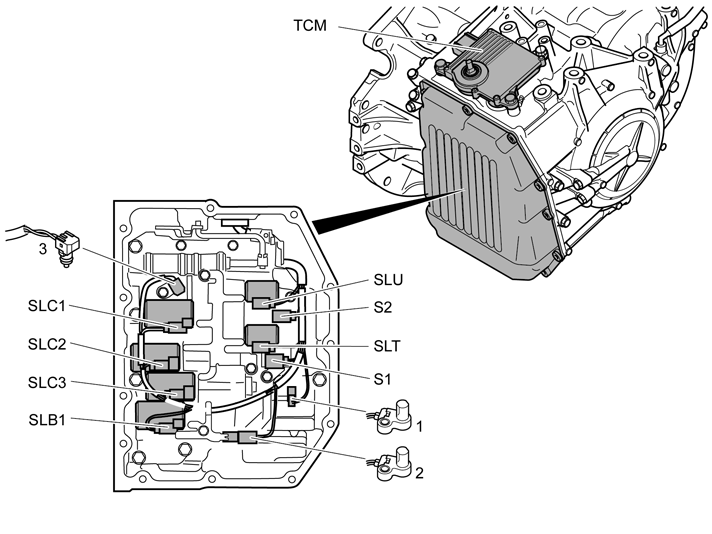

LOCATION OF COMPONENTS

GLL1028408Courtesy of VOLVO CARS CORPORATION
  1. Transmission input speed sensor:
  2. Transmission output speed sensor:
  3. Oil temperature sensor.
