Transmission Control Module (TCM) [2017-2018, B4204T43, TG-81SC AWD | 2014-2016, B5254T12, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

GLL159721Courtesy of VOLVO CARS CORPORATION

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

GLL173715Courtesy of VOLVO CARS CORPORATION

Torque:  Gear selector mechanism (nut), 16Nm

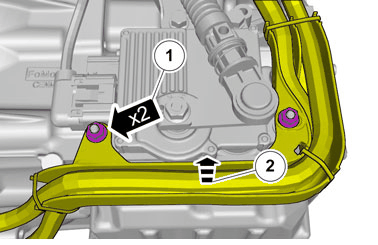

GLL173714Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

GLL154765Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

GLL173717Courtesy of VOLVO CARS CORPORATION
