O-Rings, Steering Gear Pipe [2014-2015, B4204T11 | 2014-2015, B4204T12 | 2014-2015, B5254T12 | 2014-2015, B6304T4 | 2015, B6304T5]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

VEHICLES WITH VARIABLE ASSIST POWER STEERING (VAPS)

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

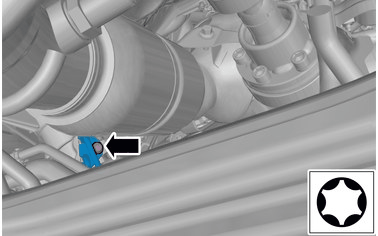

Remove the screws.

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

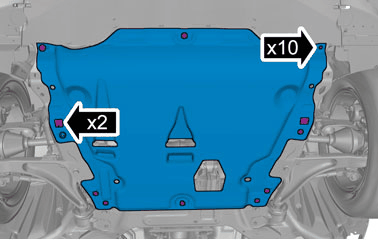

Remove the screws.

Remove the marked part.

Torque: M12, 80Nm

Courtesy of VOLVO CARS CORPORATION

Torque: M5, 5Nm

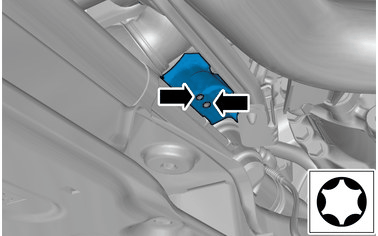

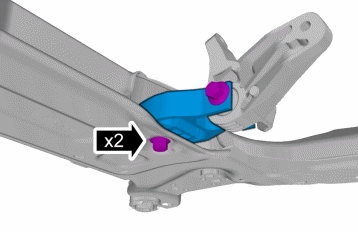

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

NOTE:

Use new seals.

Torque: Steering gear pipe, to Steering gear, 18Nm

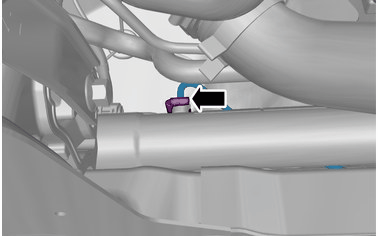

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

NOTE:

Use a new seal.

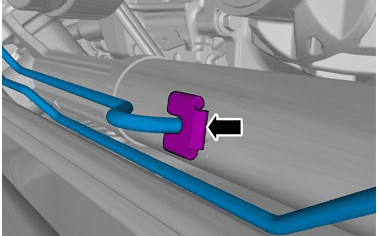

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

NOTE:

Use a new seal.

Loosen the clip.
