Power Flow

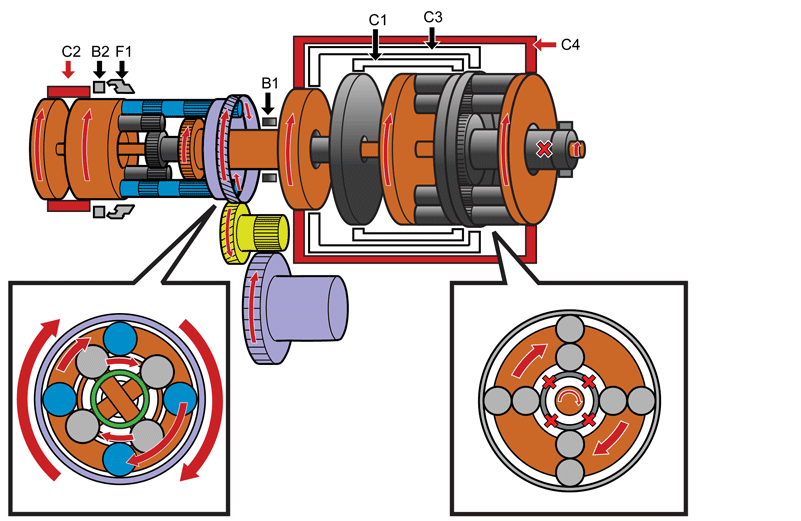

1st gear engine braking

Courtesy of VOLVO CARS CORPORATION

Solenoid

Clutch

Brakes

Freewheel

SLC1

SLC 2

SLC 3

SLC 4

SLC 5

S1

S2

C1

C2

C3

C4

B1

B2

F1

X

-

X

-

-

X

-

X

-

-

-

-

X

X

X = activated

- = not activated

* B2 is only active during engine braking.

When engine braking is activated, the movement of the wheels is transferred to the rear planetary gear carrier, whose counter-clockwise movement is hindered by F1's attempts to rotate clockwise. When B2 is activated the rear planetary gear carrier is locked, which then transfers the wheels' motion to the engine.

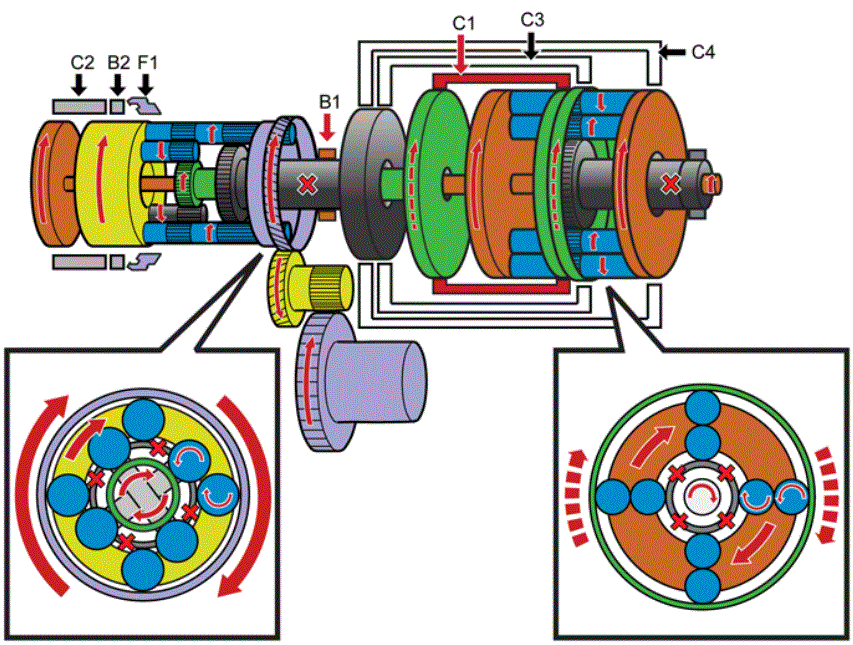

Position D, 1st gear

Courtesy of VOLVO CARS CORPORATION

Solenoid

Clutch

Brakes

Freewheel

SLC1

SLC 2

SLC 3

SLC 4

SLC 5

S1

S2

C1

C2

C3

C4

B1

B2

F1

X

-

-

-

-

X

-

X

-

-

-

-

-*

X

X = activated

- = not activated

* B2 is only active during engine braking.

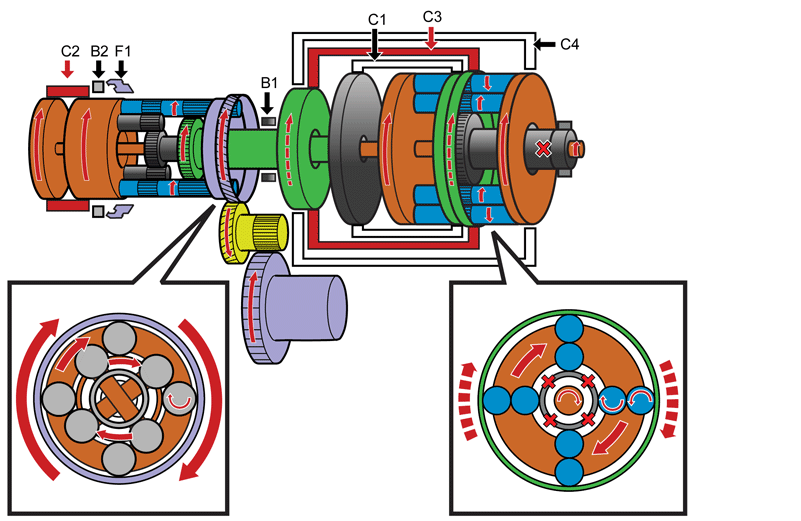

Position D, 2nd gear

Courtesy of VOLVO CARS CORPORATION

Solenoid

Clutch

Brakes

Freewheel

SLC1

SLC 2

SLC 3

SLC 4

SLC 5

S1

S2

C1

C2

C3

C4

B1

B2

F1

X

-

-

-

X

-

X

X

-

-

-

X

-*

-

X = activated

- = not activated

* B2 is only active during engine braking

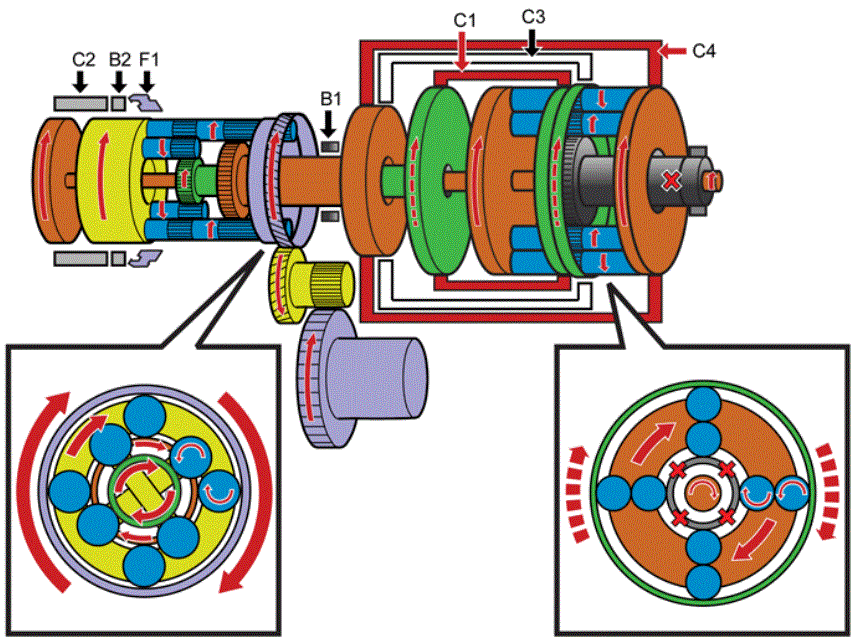

Position D, 3rd gear

Courtesy of VOLVO CARS CORPORATION

Solenoid						Clutch			Brakes		Freewheel
SLC1	SLC 2	SLC 3	SLB1	S1	S2	C1	C2	C3	B1	B2	F1
-	X	-	X	-	-	X	-	X	-	-	-

X = activated

- = not activated

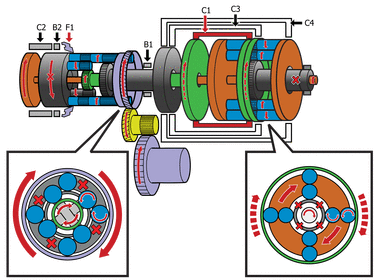

Position D, 4th gear

Courtesy of VOLVO CARS CORPORATION

Solenoid						Clutch			Brakes		Freewheel
SLC1	SLC 2	SLC 3	SLB1	S1	S2	C1	C2	C3	B1	B2	F1
-	-	X	X	-	-	X	X	-	-	-	-

X = activated

- = not activated

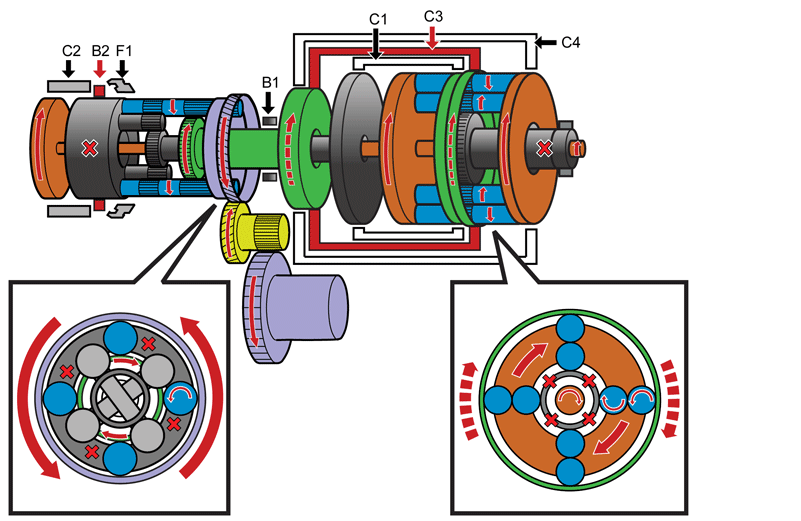

Position D, 5th gear

Courtesy of VOLVO CARS CORPORATION

Solenoid						Clutch			Brakes		Freewheel
SLC1	SLC 2	SLC 3	SLB1	S1	S2	C1	C2	C3	B1	B2	F1
X	-	-	X	-	-	-	X	X	-	-	-

X = activated

- = not activated

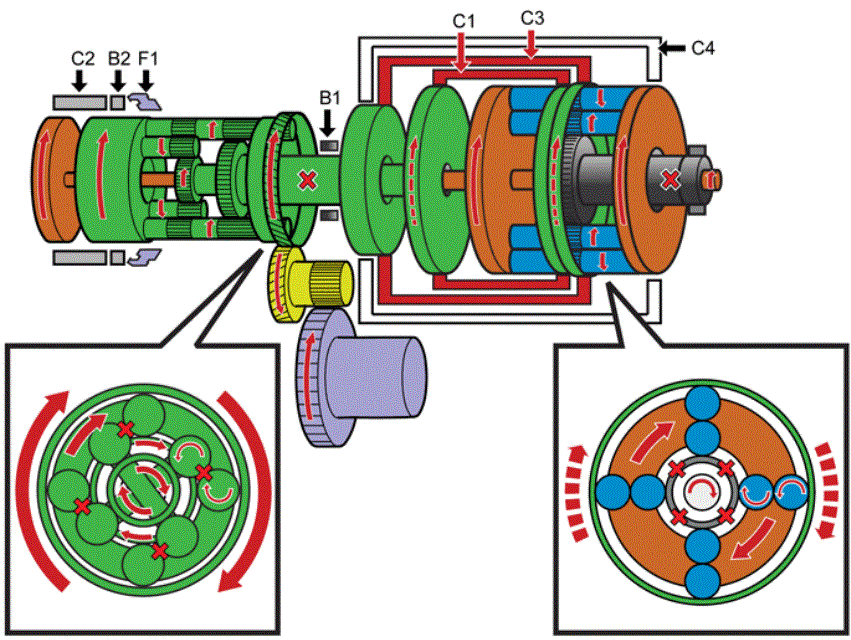

Position D, 6th gear

Courtesy of VOLVO CARS CORPORATION

Solenoid						Clutch			Brakes		Freewheel
SLC1	SLC 2	SLC 3	SLB1	S1	S2	C1	C2	C3	B1	B2	F1
X	-	X	-	-	-	-	X	-	X	-	-

X = activated

- = not activated

Position D, 7th gear

Courtesy of VOLVO CARS CORPORATION

Solenoid						Clutch			Brakes		Freewheel
SLC1	SLC 2	SLC 3	SLB1	S1	S2	C1	C2	C3	B1	B2	F1
X	-	X	-	-	-	-	X	-	X	-	-

X = activated

- = not activated

Position D, 8th gear

Courtesy of VOLVO CARS CORPORATION

Solenoid						Clutch			Brakes		Freewheel
SLC1	SLC 2	SLC 3	SLB1	S1	S2	C1	C2	C3	B1	B2	F1
X	-	X	-	-	-	-	X	-	X	-	-

X = activated

- = not activated

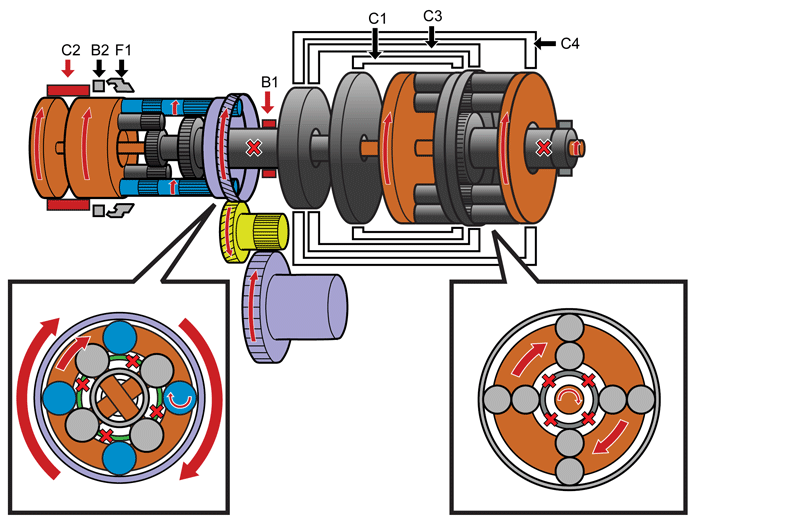

Position R, reverse gear

Courtesy of VOLVO CARS CORPORATION

speed

Solenoid

Clutch

Brakes

Freewheel

SLC1

SLC 2

SLC 3

SLB1

S1

S2

C1

C2

C3

B1

B2

F1

Max 7 km/h

X

X

X

-

X

-

-

-

X

-

X

-

Above 7 km/h

X

X

X

X

X

-

-

-

-

-

X

-

X = activated

- = not activated
