Spotlights (Certain Versions Only)

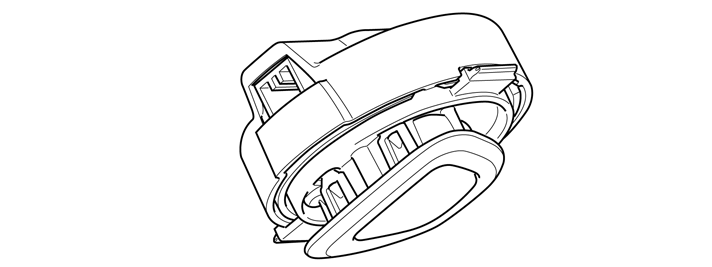

GLL1004120Courtesy of VOLVO CARS CORPORATION

Certain vehicles are equipped with four spotlights in the roof. Two front and two rear. Spotlights in the front of the passenger compartment are activated when the general lighting is switched on and can be activated manually by pressing in the component. Spotlights in the rear can only be activated manually.

The components are energized via the relay for interior lighting in the Central Electronic Module (CEM).
