Fuel Pump And Level Sensor Unit [2017, B4204T11, TG-81SC AWD | 2016-2017, B4204T9, TG-81SC AWD]: Installation

CAUTION:

Make sure to carefully follow the instruction.

Courtesy of VOLVO CARS CORPORATION

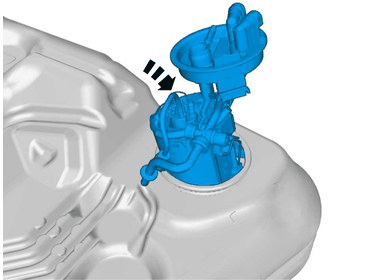

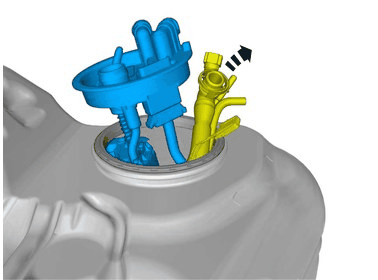

HINT: It may be necessary to twist or turn the component.

Courtesy of VOLVO CARS CORPORATION

Lift the marked component forward.

Courtesy of VOLVO CARS CORPORATION

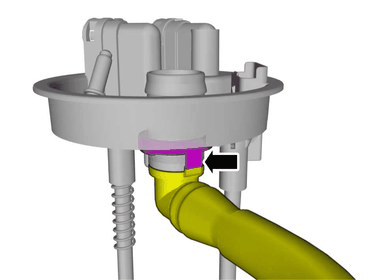

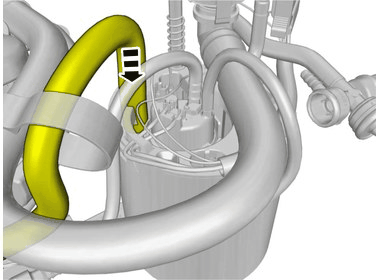

Install the hose.

Courtesy of VOLVO CARS CORPORATION

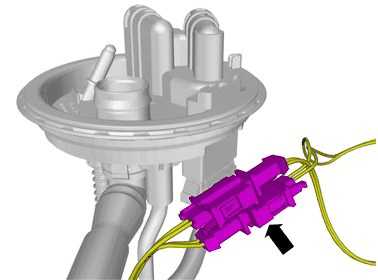

NOTE:

The number of connectors may vary depending on the vehicle's equipment level.

Connect the connectors.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The image content (components etc.) may vary depending on equipment level or for other reasons.

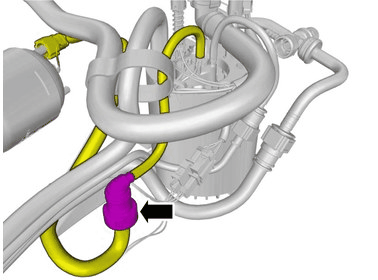

Install the hose.

Courtesy of VOLVO CARS CORPORATION

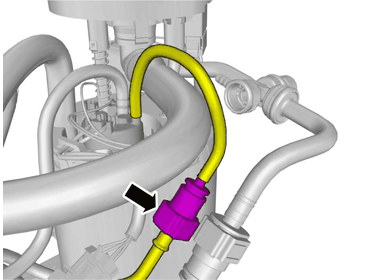

Install the hose.

Courtesy of VOLVO CARS CORPORATION

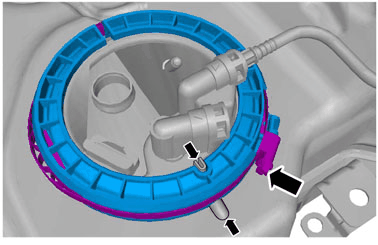

CAUTION:

Make sure to place the component as the graphic shows.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The image content (components etc.) may vary depending on equipment level or for other reasons.

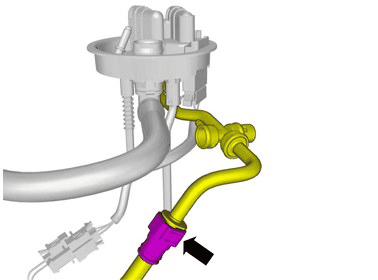

Install the hose.

ORIENTATION VIEW

Courtesy of VOLVO CARS CORPORATION

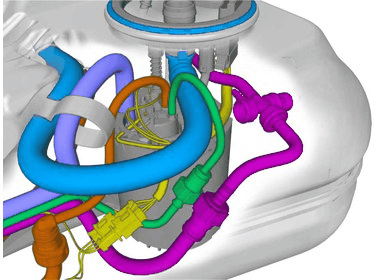

CAUTION:

Note the routing of the lines and hoses.

The graphic shows the correct design.

Courtesy of VOLVO CARS CORPORATION

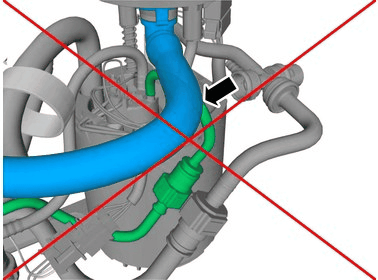

The graphic shows an incorrect design that needs correction.

Courtesy of VOLVO CARS CORPORATION

Locate relevant marking.

Tighten the cable tie.

Install fuel tank, refer to: FUEL TANK
