Steering Column [2009-2017]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

The steering column may contain pyrotechnic components.

NOTE:

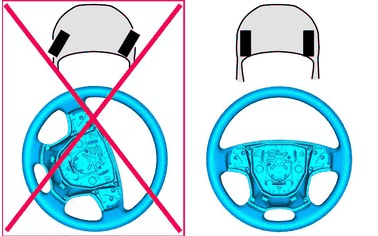

Make sure that the road wheels are in the straight ahead position.

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

GLL1032044

Courtesy of VOLVO CARS CORPORATION

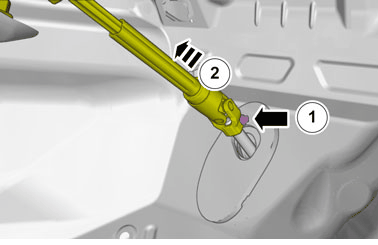

Remove Steering Wheel Module (SWM), refer to: STEERING WHEEL MODULE

GLL171202

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that a new component is installed.

Torque: steering column to steering gear (steering shaft joint), 25Nm

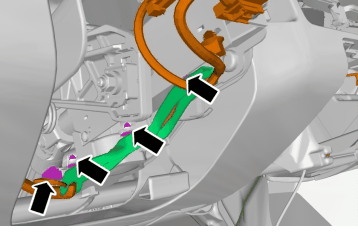

GLL155567

Courtesy of VOLVO CARS CORPORATION

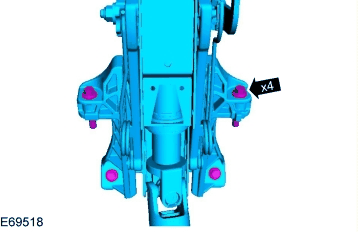

GLL155568

Courtesy of VOLVO CARS CORPORATION

Torque: Steering column to dashboard, 24Nm

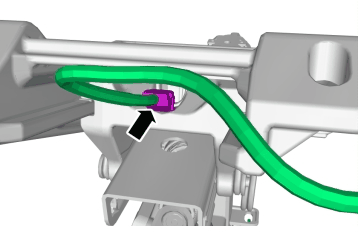

GLL155569

Courtesy of VOLVO CARS CORPORATION

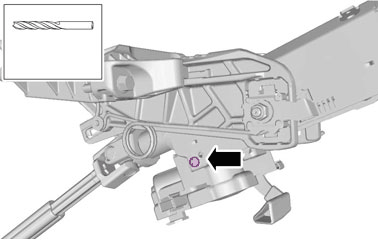

GLL172603

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the component is secured with shear bolt (or bolts).

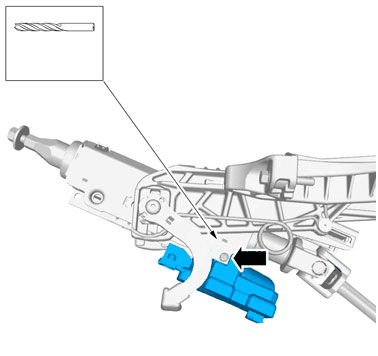

GLL172602

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
