Location Of Components

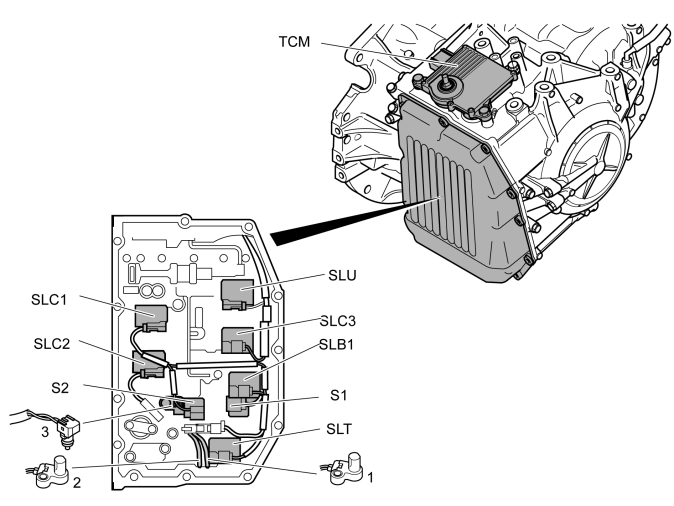

GLL1041097Courtesy of VOLVO CARS CORPORATION
  1. Transmission input speed sensor:
  2. Transmission output speed sensor:
  3. Oil temperature sensor.
