Audio Module [2016-2020]: Removal

Courtesy of VOLVO CARS CORPORATION

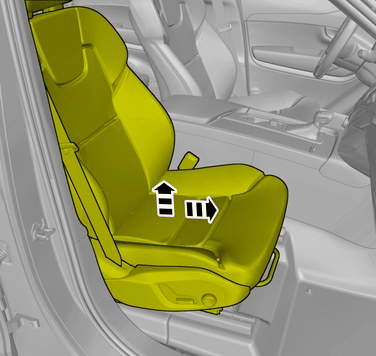

LEFT HAND DRIVE VEHICLES

Courtesy of VOLVO CARS CORPORATION

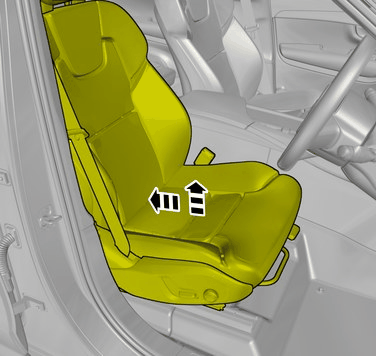

RIGHT-HAND DRIVE VEHICLES

Courtesy of VOLVO CARS CORPORATION

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

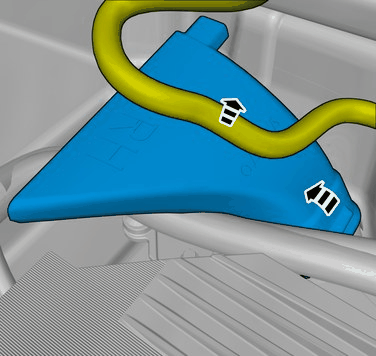

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

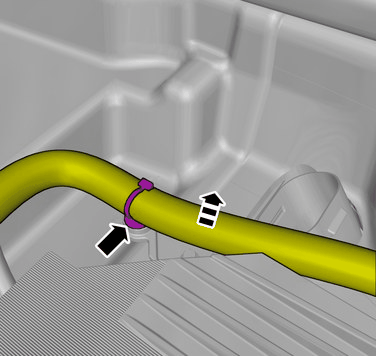

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

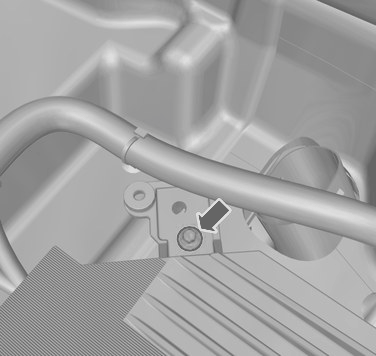

Remove the screw.

Torque:  M5, 5Nm

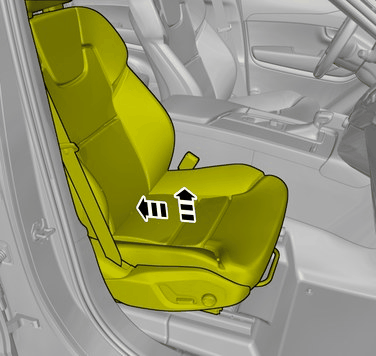

LEFT HAND DRIVE VEHICLES

Courtesy of VOLVO CARS CORPORATION

RIGHT-HAND DRIVE VEHICLES

Courtesy of VOLVO CARS CORPORATION

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

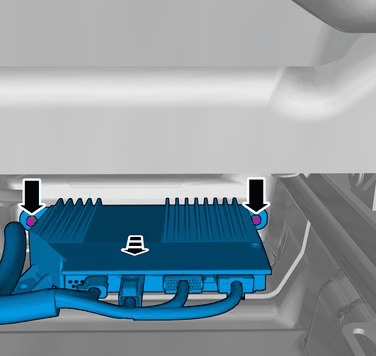

Remove the screws.

Remove the part carefully

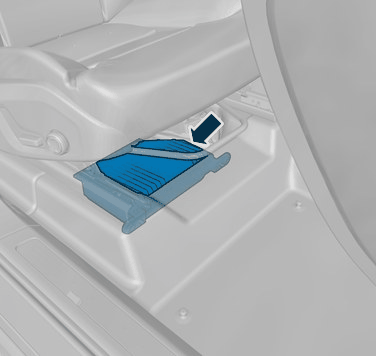

Remove the marked part.

Torque:  M6, 10Nm

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

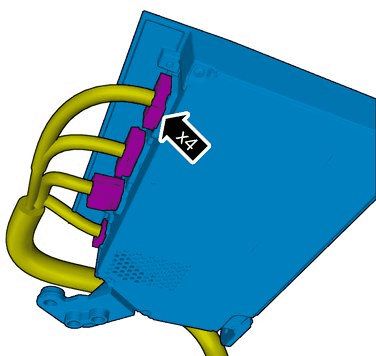

Disconnect the connectors.

Remove the marked part.
