Vehicle Connectivity Module (VCM) [2016]: Removal

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Remove right-hand side, side panel load compartment, refer to: SIDE PANEL LOADSPACE

Courtesy of VOLVO CARS CORPORATION

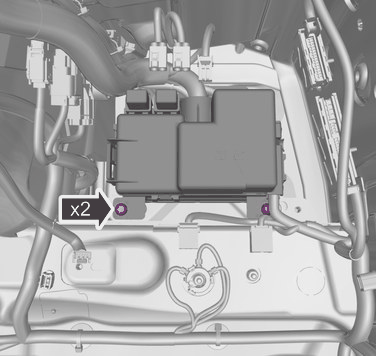

Remove the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

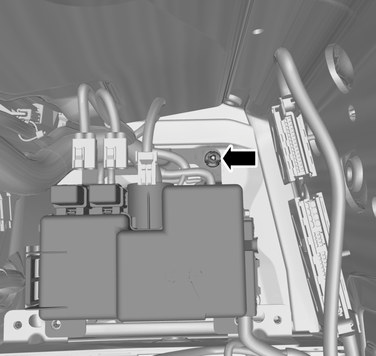

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

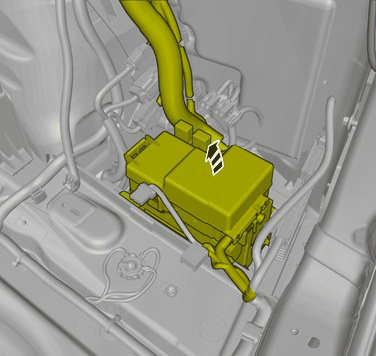

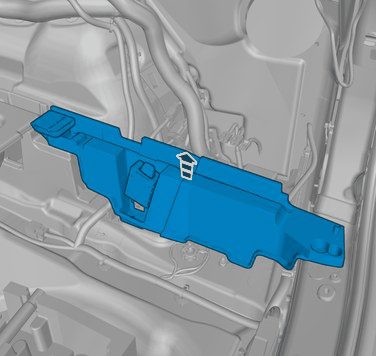

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

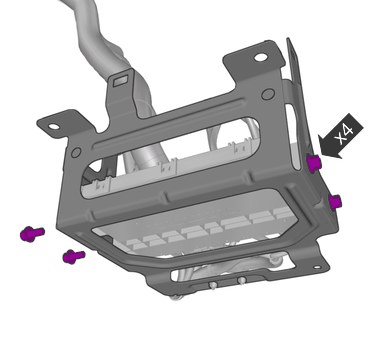

Remove the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

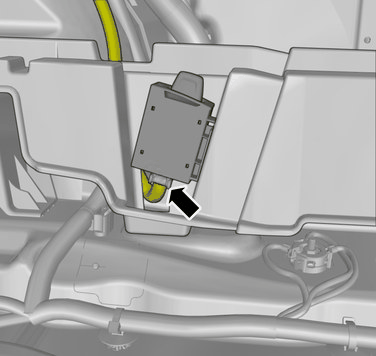

Remove the nut.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

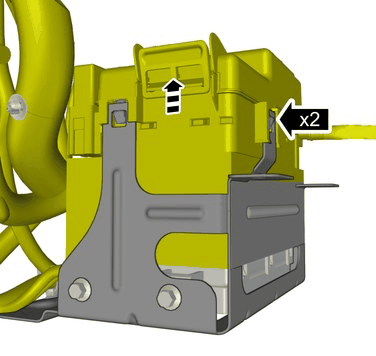

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

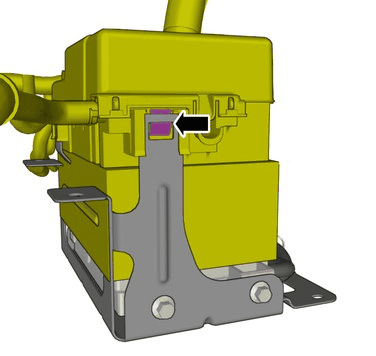

Loosen the clips.

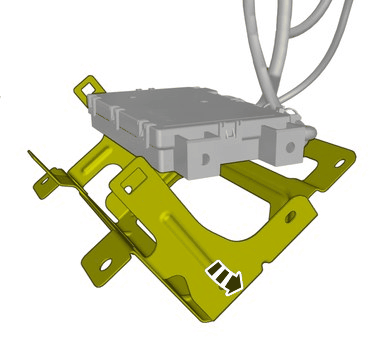

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

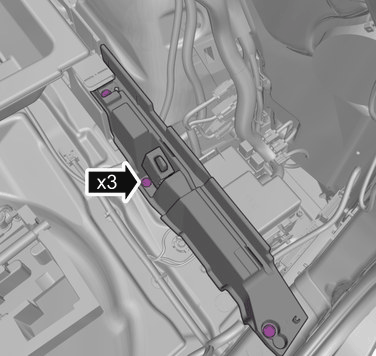

Remove the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

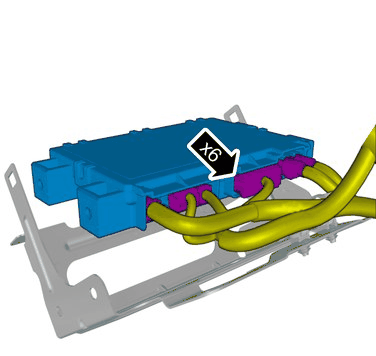

Disconnect the connectors.
