Vehicle Connectivity Module (VCM) [2017-2020]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

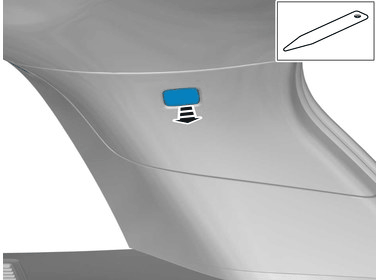

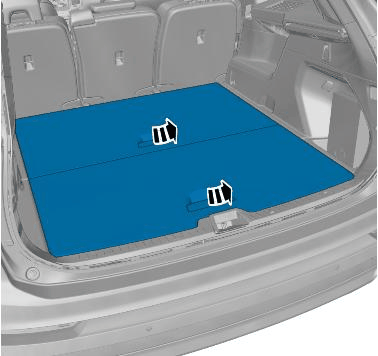

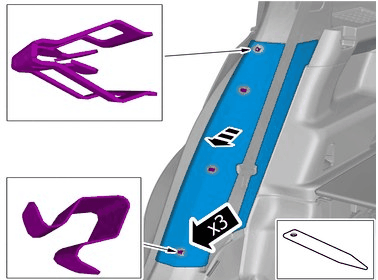

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

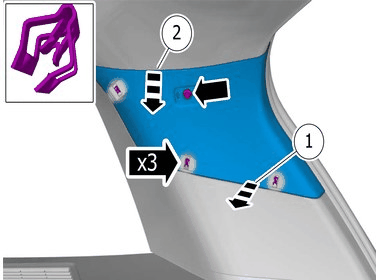

Remove the screw.

Remove the marked part.

Torque: Panel, to D-Pillar, 4.5Nm

Courtesy of VOLVO CARS CORPORATION

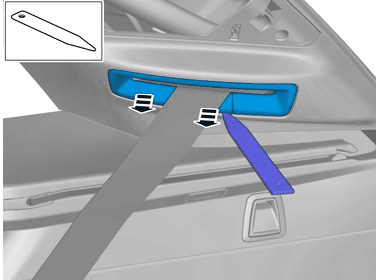

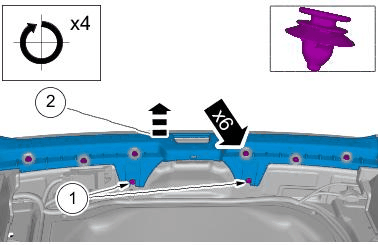

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

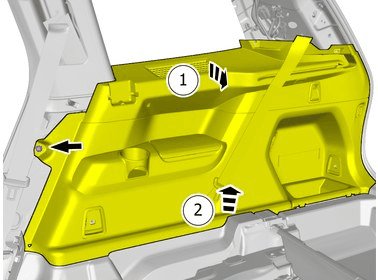

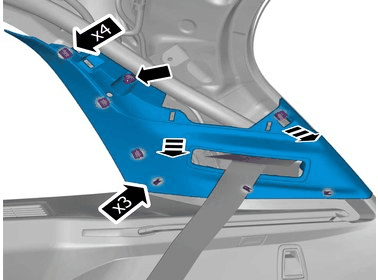

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

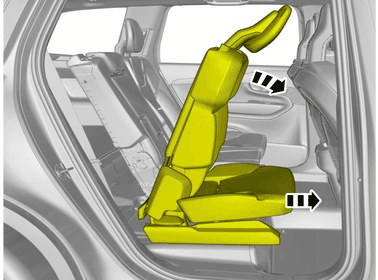

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

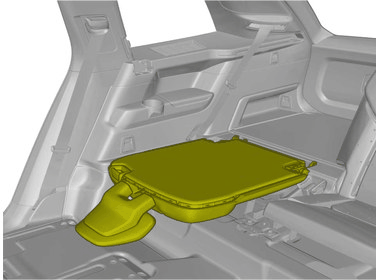

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

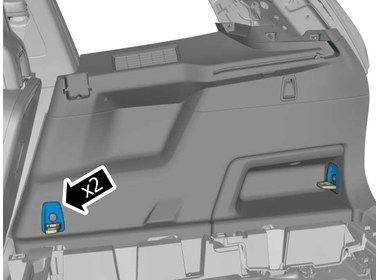

Torque: Cargo anchor, to body, 13Nm

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the part carefully

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

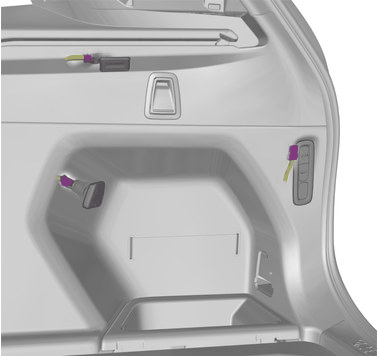

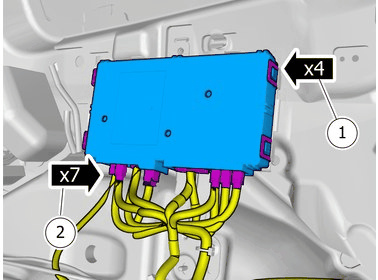

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Detach the panel.

Courtesy of VOLVO CARS CORPORATION

APPLIES TO SOUTH AFRICA

NOTE:

For the SIM card to work, roaming must be enabled.
