Foot Movement Detection Module (FMDM) [2016-2020]: Installation
 Courtesy of VOLVO CARS CORPORATION
|

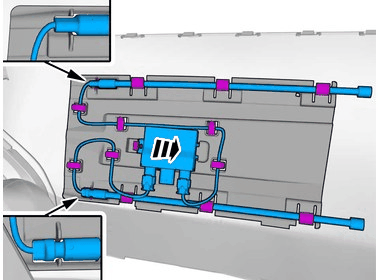

NOTE:
Make sure that the connection/connections point downwards.
Install the marked component.
Position wire as illustrated.
 Courtesy of VOLVO CARS CORPORATION
|

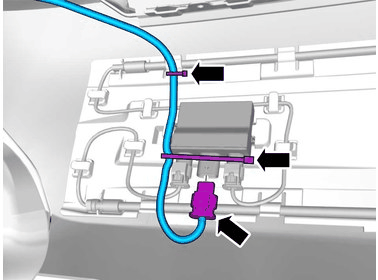

Position wire as illustrated.
Connect the connector.
Tighten the cable ties.
ALL VEHICLES
To install, reverse the removal procedure.
