Trailer Module (TRM) [2016-2020]: Removal

Courtesy of VOLVO CARS CORPORATION

NOTE:

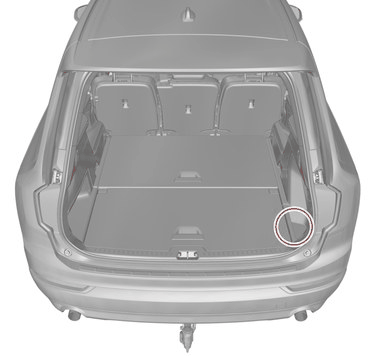

Orientation view

Follow the instructions regarding disconnection and connection, refer to: BATTERY DISCONNECTING AND CONNECTING

Courtesy of VOLVO CARS CORPORATION

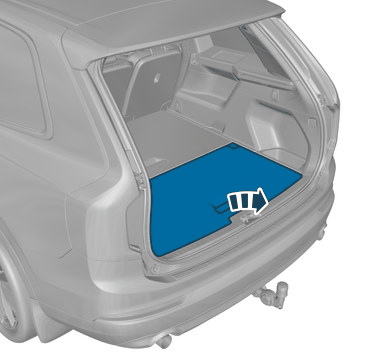

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

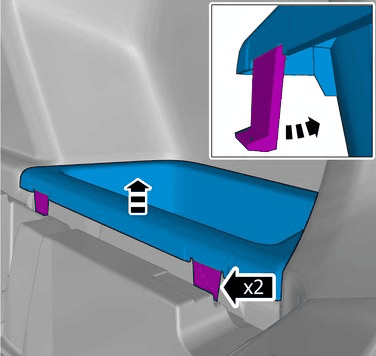

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

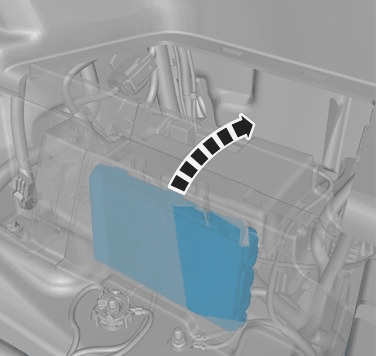

Lift the marked component forward.

Courtesy of VOLVO CARS CORPORATION

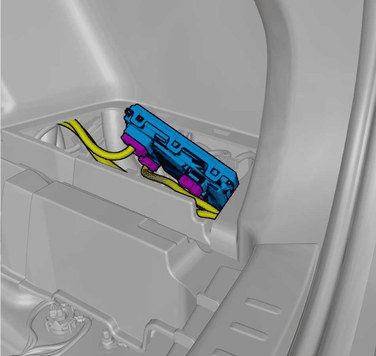

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

Disconnect the connectors.

Remove the marked part.
