Wide Angle Vision Module (WAM) [2016-2020]: Removal

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

RIGHT-HAND DRIVE VEHICLES

Courtesy of VOLVO CARS CORPORATION

NOTE:

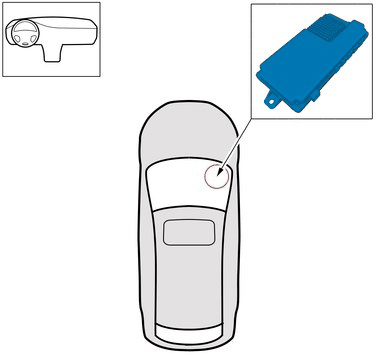

Orientation view

LEFT HAND DRIVE VEHICLES

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

The image shows an example.

On both sides.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Remove sill molding front, refer to: FRONT SILL MOLDING

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Fold the carpet aside.

Courtesy of VOLVO CARS CORPORATION

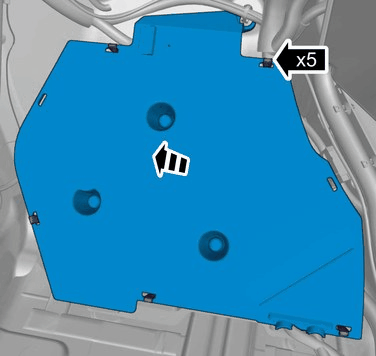

Loosen the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

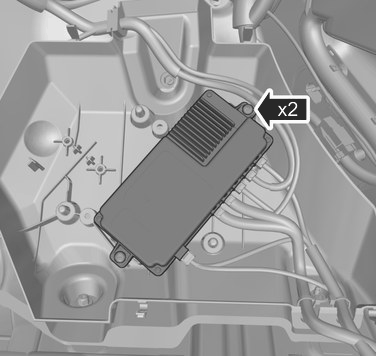

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

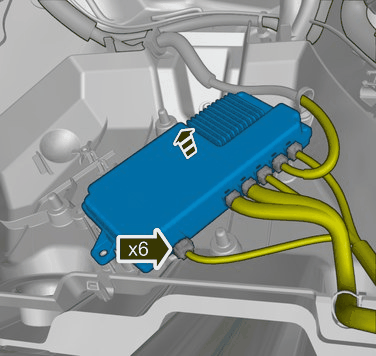

Disconnect the connectors.

Remove the marked part.
