Fuel Pump And Level Sensor Unit [2016, 2017, 2019, 2020, B4204T28 | 2018, B4204T28, TG-81SC]: Installation

To install, reverse the removal procedure.

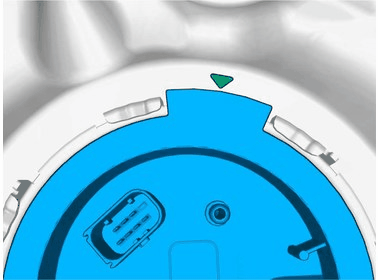

GLL1005959Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the component is positioned correctly.

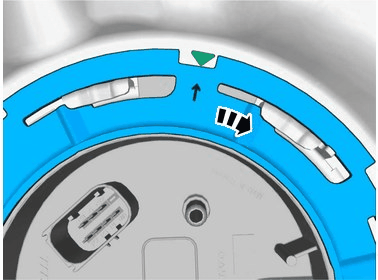

GLL1016054Courtesy of VOLVO CARS CORPORATION
NOTE:

The component can only be installed in 1 position.

Locate relevant marking.

Reset according to: Diagnostics / Components / Control modules / Engine control module (ECM) / Diagnostic Sequences/Resetting adaptations for the fuel pump, low pressure side
