Discarding Pyrotechnic Components [2016-2020]: Discarding

WARNING:

Make sure to follow local regulations that apply to the instruction/information below.

See information regarding the disposal of pyrotechnical parts, refer to: DISCARDING PYROTECHNIC COMPONENTS

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure to be a minimum distance of 9 meters from pyrotechnic components during deployment. If possible, stand behind a wall.

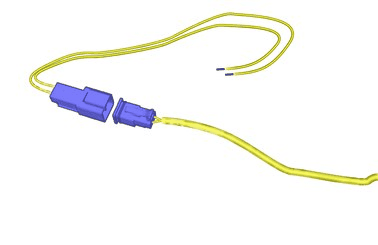

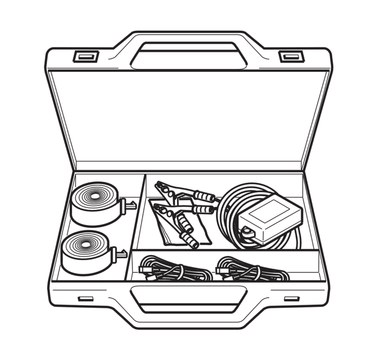

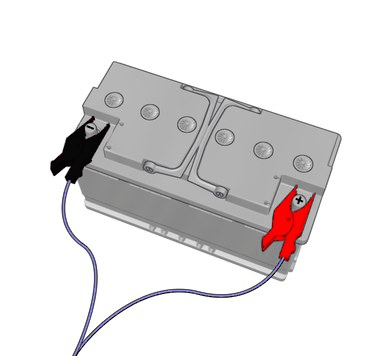

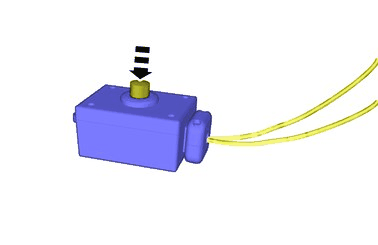

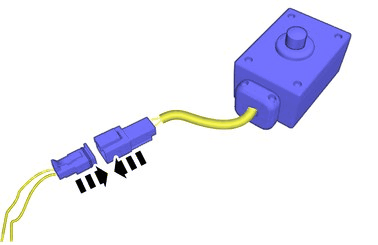

Destruction is carried out by connecting an adapter cable to the component and then connecting the cable to a 12 V battery via a discharge box, whereby the component can be activated.

CAUTION:

If a pyrotechnic component has several connectors, it has several ignition devices and several steps. All must be destroyed.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

WARNING:

Never deploy a pyrotechnical component with the expanding part facing downward.

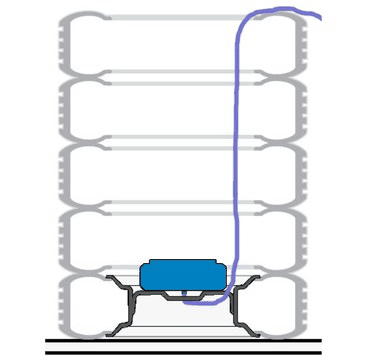

Place a tire, with wheel rim, on the ground.

Put four tires (same dimension and without rim) on top of the previously mentioned wheel.

Tie all tires together with the straps supplied.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Wear safety goggles, protective gloves and ear protectors.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Deployed pyrotechnic components must be disposed of according to local regulations.
