Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

ALL VEHICLES

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Remove steering wheel, refer to: STEERING WHEEL

Remove panel steering column, refer to: PANEL STEERING COLUMN

Remove instrument panel lower, refer to: INSTRUMENT PANEL LOWER

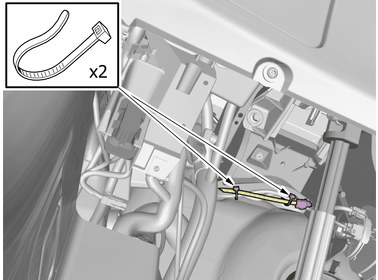

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

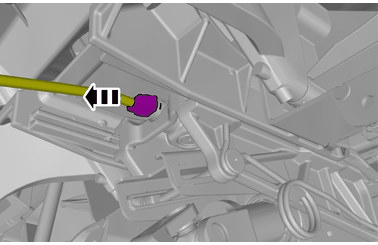

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

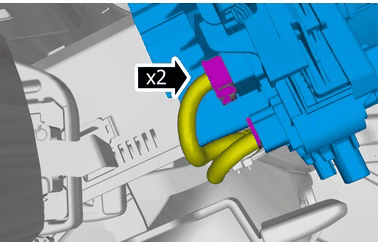

Courtesy of VOLVO CARS CORPORATION

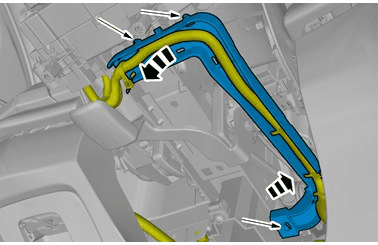

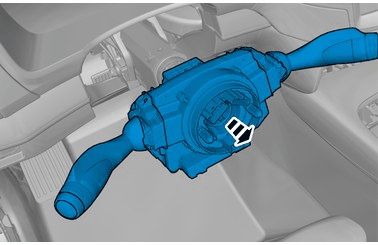

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

MODEL XC90, MANUFACTURED BEFORE CHASSIS NUMBER -5640

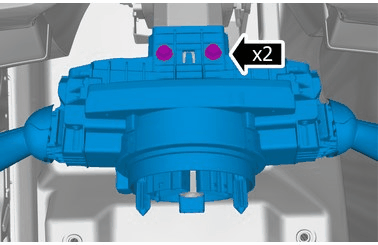

Courtesy of VOLVO CARS CORPORATION

WARNING:

The steering column may contain pyrotechnic components.

Disconnect the connector.

ALL VEHICLES

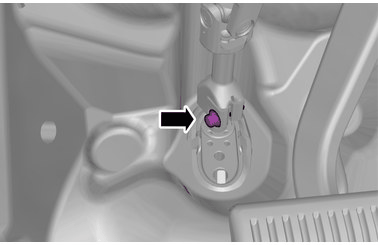

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: steering column to steering gear (steering shaft joint), 24Nm

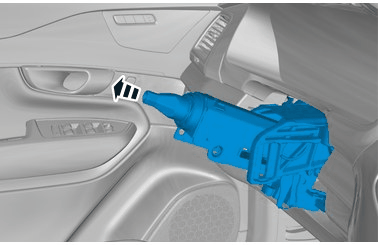

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M8, 24Nm

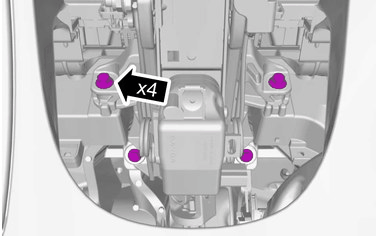

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the sharp edge does not damage the surrounding component.

INSTALLATION

To install, reverse the removal procedure.

MODEL XC90, MANUFACTURED BEFORE CHASSIS NUMBER -5640

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

The part is not to be reused.

INSTALLATION

To install, reverse the removal procedure.

Order and download the appropriate Volvo software.
