Trailer Module (TRM) [2019-2022]: Removal

Courtesy of VOLVO CARS CORPORATION

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

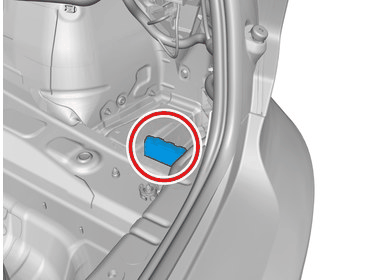

Remove right-hand side side panel load compartment. Refer to: [SIDE PANEL LOADSPACE]

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

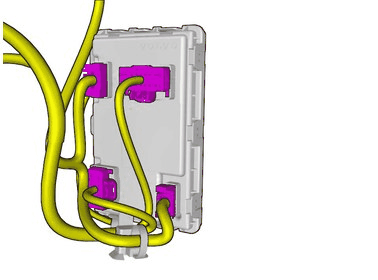

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

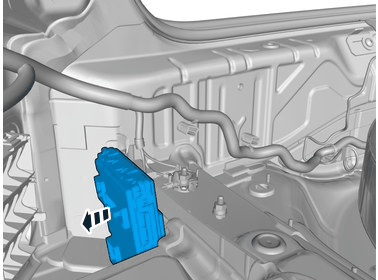

Remove the marked part.
