Steering Wheel Switch Module SWSM [2017-2022]: Removal

Courtesy of VOLVO CARS CORPORATION

NOTE:

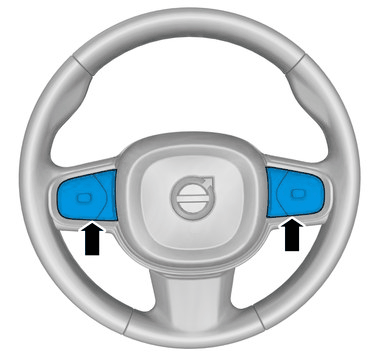

Orientation view

Remove airbag driver's side. Refer to: [DRIVER'S AIRBAG]

Courtesy of VOLVO CARS CORPORATION

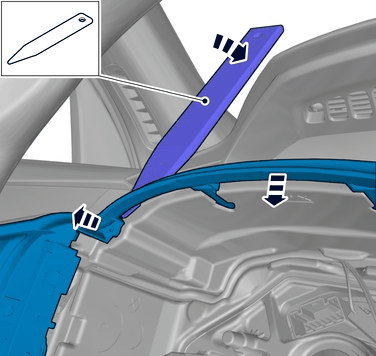

On both sides.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the routing of the lines and hoses.

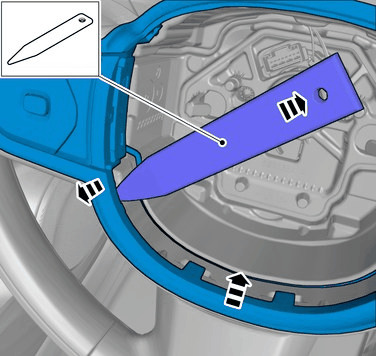

On both sides.

Courtesy of VOLVO CARS CORPORATION

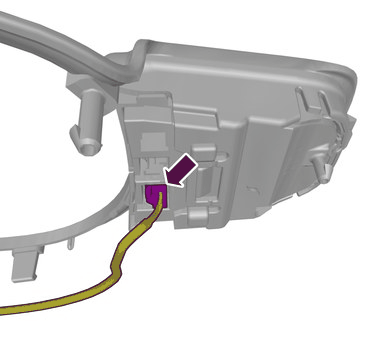

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

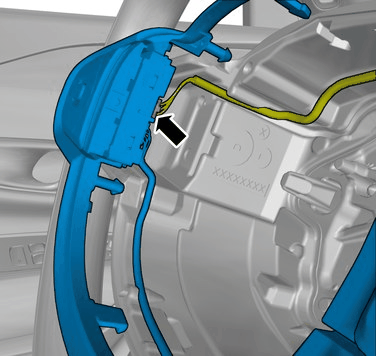

Disconnect the connector.

On both sides.

Courtesy of VOLVO CARS CORPORATION

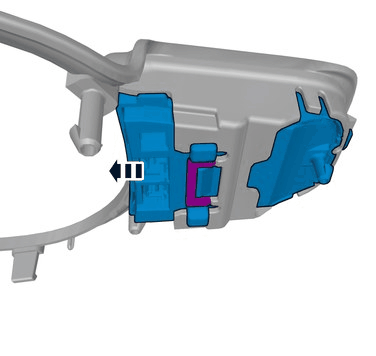

Remove the marked part.

On both sides.
