Removal And Installation

REMOVAL

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

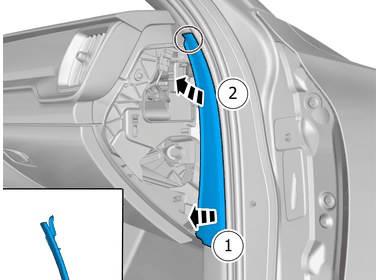

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

Fold the carpet aside.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

Check that the fasteners are undamaged before installation. If not, they must be replaced with new ones.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

INSTALLATION

To install, reverse the removal procedure.

NOTE:

The following steps are only necessary when installing a new component.

Courtesy of VOLVO CARS CORPORATION

Depress the locking device.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Connect the connector.

INSTALLATION

Reinstall the removed part.

Order and download the appropriate software according to VIDA/SOFTWARE.
