Foot Movement Detection Module (FMDM) [2019-2022]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Follow the instructions for working at the car lift. Refer to: [WORKING WITH A CAR LIFT]

Courtesy of VOLVO CARS CORPORATION

NOTE:

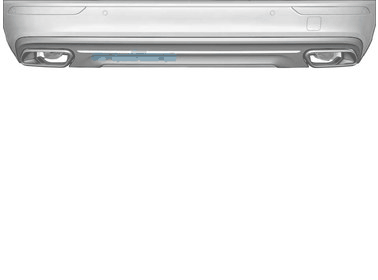

Orientation view

Courtesy of VOLVO CARS CORPORATION

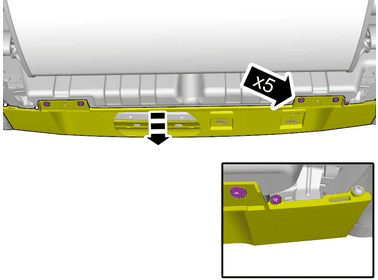

Raise the car.

Remove the screws.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Loosen the clips.

Remove the marked part.
