Trailer Module (TRM) [2018-2022]: Removal

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

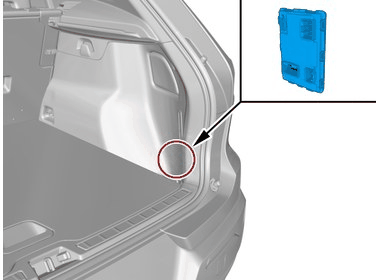

Orientation view

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

Remove right-hand side side panel load compartment. Refer to: SIDE PANEL LOADSPACE

Courtesy of VOLVO CARS CORPORATION

NOTE:

The number of connectors may vary depending on the vehicle's equipment level.

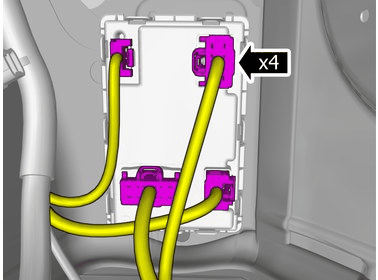

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

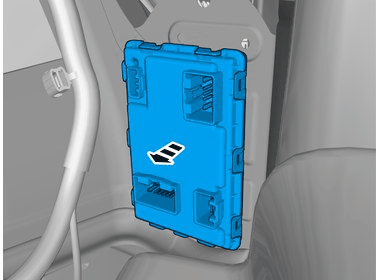

Remove the marked part.
