Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Only specially trained technicians may work with the High voltage system.

Perform high voltage battery, disassembly. Refer to: HIGH VOLTAGE BATTERY, DISMANTLING

APPLIES TO VEHICLES WITH VARIANT CODE CK06

Courtesy of VOLVO CARS CORPORATION

NOTE:

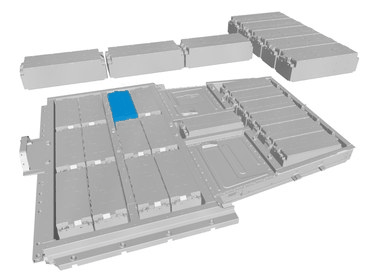

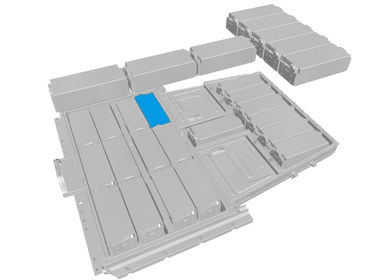

Orientation view

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that new components are installed.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

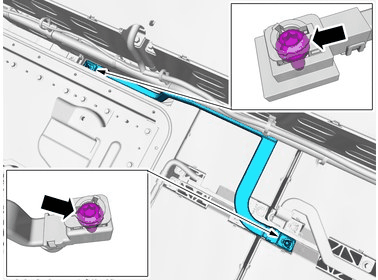

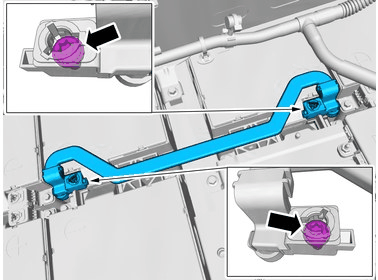

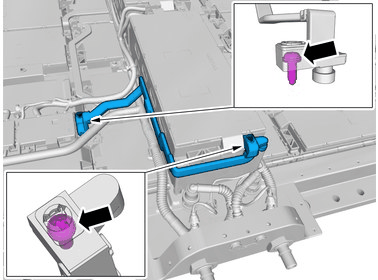

Loosen the screws.

Remove the marked part.

Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Check that the fasteners are undamaged before installation. If not, they must be replaced with new ones.

Use hands only.
Torque: High voltage bus bar, to Battery terminal, 13Nm

Courtesy of VOLVO CARS CORPORATION

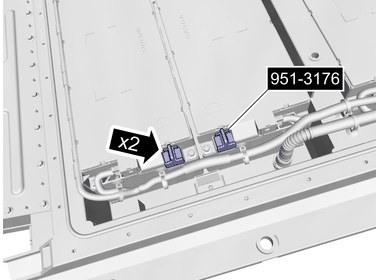

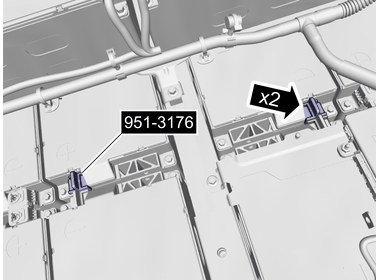

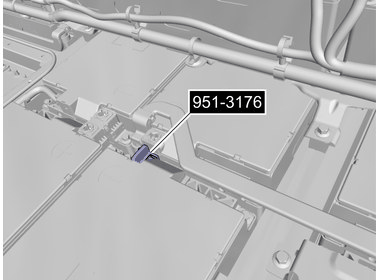

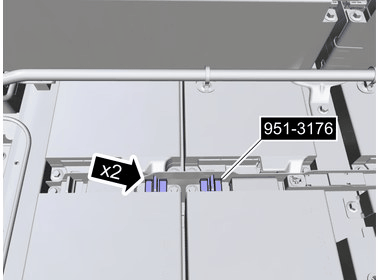

Special Tool: 951 3176 Plugs Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Check that the fasteners are undamaged before installation. If not, they must be replaced with new ones.

Use hands only.
Torque: High voltage bus bar, to Battery terminal, 13Nm

Courtesy of VOLVO CARS CORPORATION

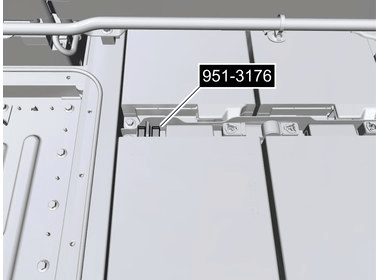

Special Tool: 951 3176 Plugs Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Check that the fasteners are undamaged before installation. If not, they must be replaced with new ones.

Use hands only.
Torque: High voltage bus bar, to Battery terminal, 13Nm

Courtesy of VOLVO CARS CORPORATION

Special Tool: 951 3176 Plugs Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Check that the fasteners are undamaged before installation. If not, they must be replaced with new ones.

Use hands only.
Torque: High voltage bus bar, to Battery terminal, 13Nm

Courtesy of VOLVO CARS CORPORATION

Special Tool: 951 3176 Plugs Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Courtesy of VOLVO CARS CORPORATION

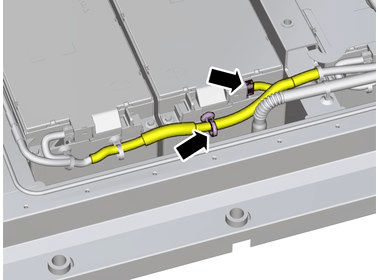

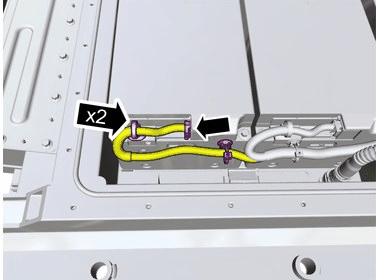

Disconnect the connector.

Remove the cable harness clips.

Loosen the wiring harness or move it to the side.

Courtesy of VOLVO CARS CORPORATION

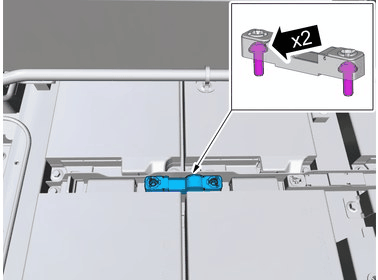

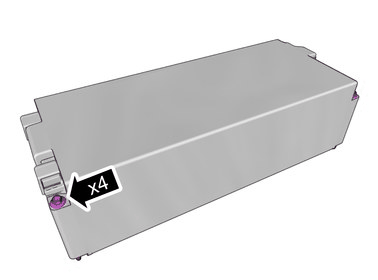

Remove the screws.

Torque: Screw, cell module, high voltage battery, 6Nm

Courtesy of VOLVO CARS CORPORATION

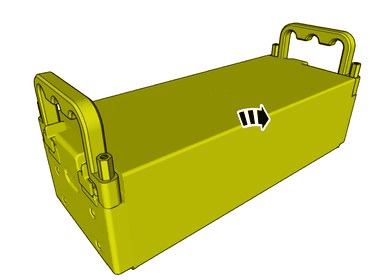

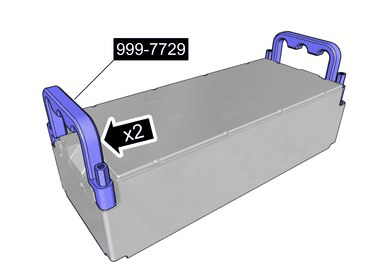

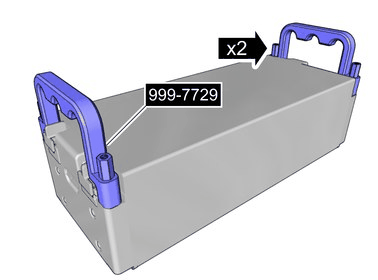

Special Tool: 999 7729 Handtag

Courtesy of VOLVO CARS CORPORATION

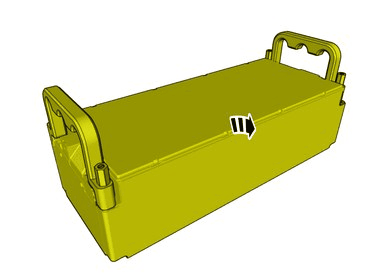

CAUTION:

Take extra care when handling the component.

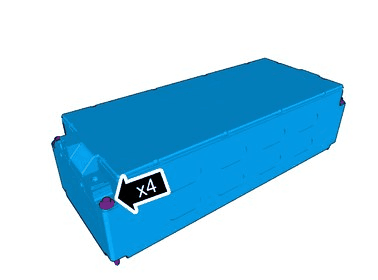

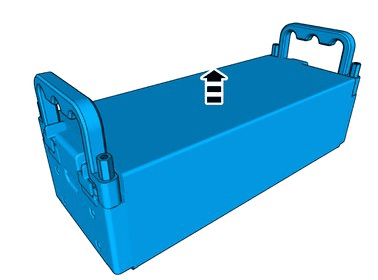

Loosen the marked detail.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Place removed module on a clean, smooth non-conductive surface.

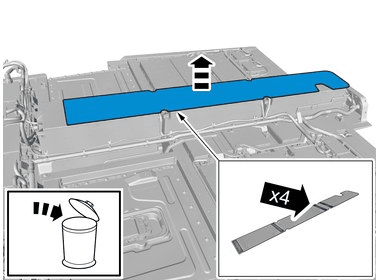

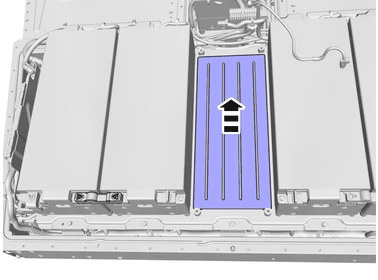

Remove the marked part.

APPLIES TO VEHICLES WITH VARIANT CODE CK07

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

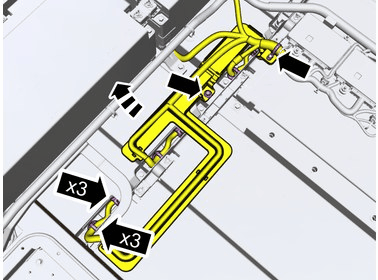

Remove the cable harness clips.

Disconnect the connectors.

Remove the screw.

Loosen the wiring harness or move it to the side.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

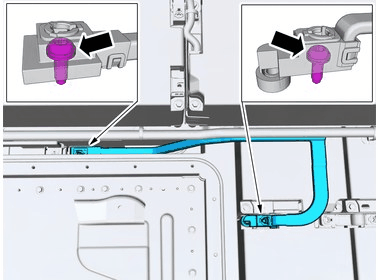

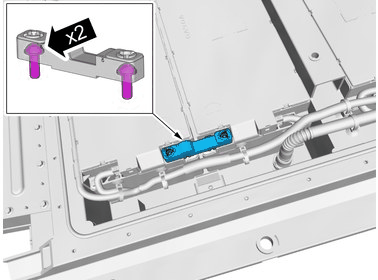

Loosen the screws.

Remove the marked part.

Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Check that the fasteners are undamaged before installation. If not, they must be replaced with new ones.

Use hands only.
Torque: High voltage bus bar, to Battery terminal, 13Nm

Courtesy of VOLVO CARS CORPORATION

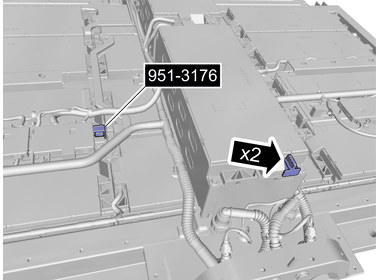

Special Tool: 951 3176 Plugs Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Check that the fasteners are undamaged before installation. If not, they must be replaced with new ones.

Use hands only.
Torque: High voltage bus bar, to Battery terminal, 13Nm

Courtesy of VOLVO CARS CORPORATION

Special Tool: 951 3176 Plugs Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the cable harness clips.

Loosen the wiring harness or move it to the side.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: Screw, cell module, high voltage battery, 6Nm

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7729 Handtag

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

Loosen the marked detail.

Courtesy of VOLVO CARS CORPORATION

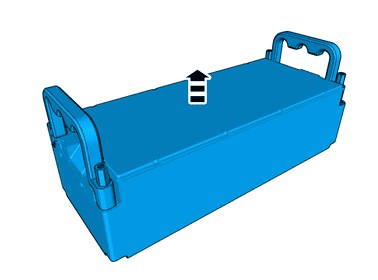

CAUTION:

Place removed module on a clean, smooth non-conductive surface.

Remove the marked part.

CLEANING

Courtesy of VOLVO CARS CORPORATION

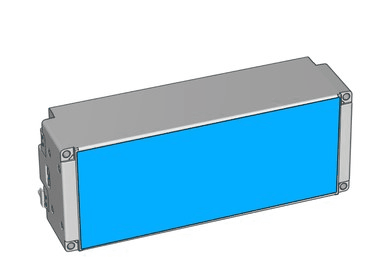

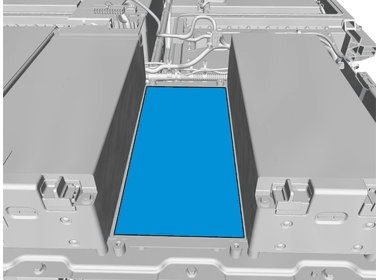

Clean the surface.

The surface must be free from damage.

Use: Putty knife (plastic)

Use: Vacuum cleaner

Courtesy of VOLVO CARS CORPORATION

Clean the surface.

The surface must be free from damage.

Use: Putty knife (plastic)

APPLIES TO VEHICLES WITH VARIANT CODE CK06

Courtesy of VOLVO CARS CORPORATION

NOTE:

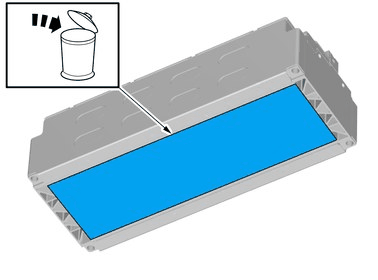

Make sure that a new component is installed.

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

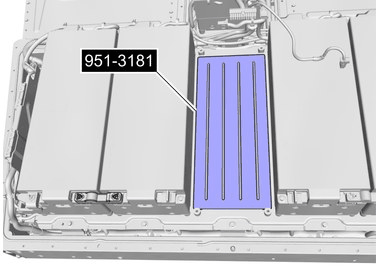

Special Tool: 951 3181 Template

Courtesy of VOLVO CARS CORPORATION

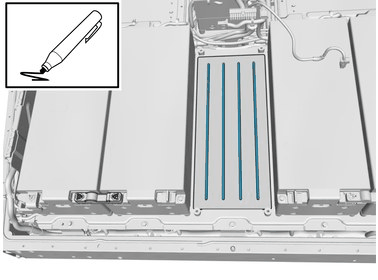

Mark using a pen

Courtesy of VOLVO CARS CORPORATION

Remove the Special Tool.

Courtesy of VOLVO CARS CORPORATION

Cut the component according to the image.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Ensure that ventilation is good.

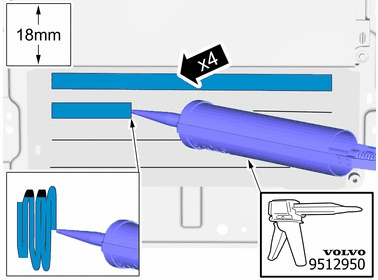

Special Tool: 951 2950 Glue gun

To install, reverse the removal procedure.
