Transmission Actuator Control Module (TACM) [2018-2022, B4204T18, TG-81SC AWD | 2019-2022, B4204T47, TG-81SC; TG-81SC AWD]: Removal

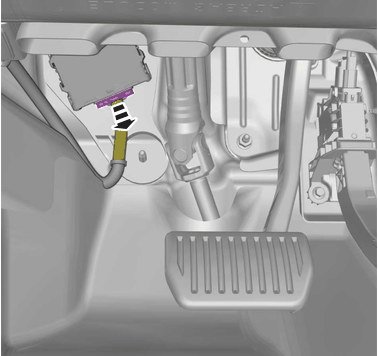

GLL1038083

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Fold marked part aside.

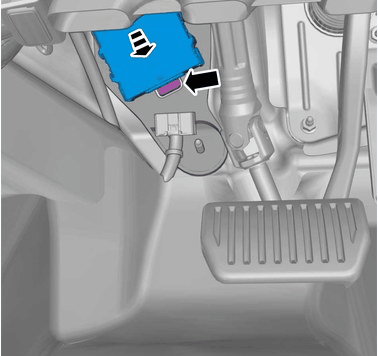

GLL1028656

Courtesy of VOLVO CARS CORPORATION

Depress the locking device.

Pull the component in direction of the arrow.

Remove the marked part.
