Side Obstacle Detection Control Module Right (SODR) [2021-2022]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Courtesy of VOLVO CARS CORPORATION

Raise the car.

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

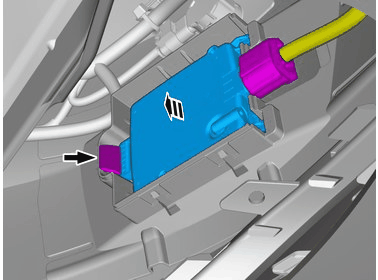

Release the catch.

Remove the marked part.

Disconnect the connector.
