Vehicle Connectivity Module (VCM) [2017-2021]: Removal

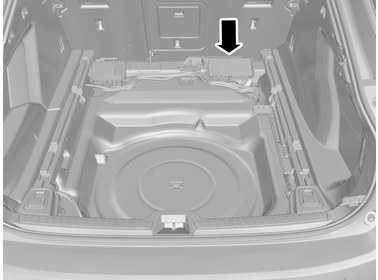

GLL1017791Courtesy of VOLVO CARS CORPORATION
NOTE:

Orientation view

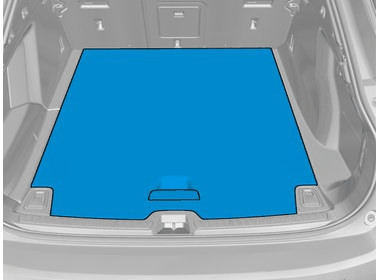

GLL1025121Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

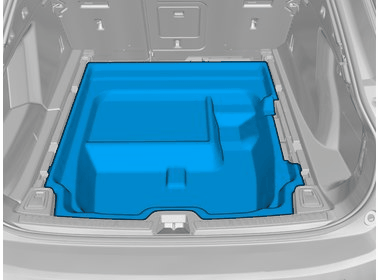

GLL1029058Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

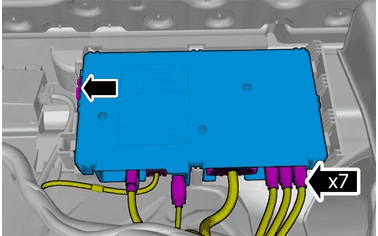

GLL1010505Courtesy of VOLVO CARS CORPORATION
  1. Release the lock.
  2. Disconnect the connectors.
  3. Remove the marked part.
