Engine Block, Installing Components [2019-2021, B4204T27, TG-81SC AWD]: Installation

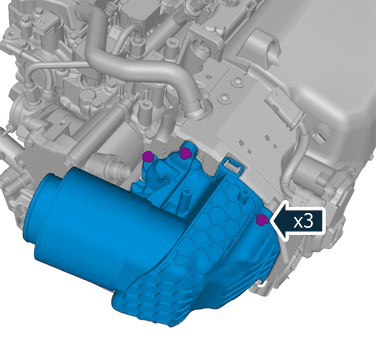

Courtesy of VOLVO CARS CORPORATION

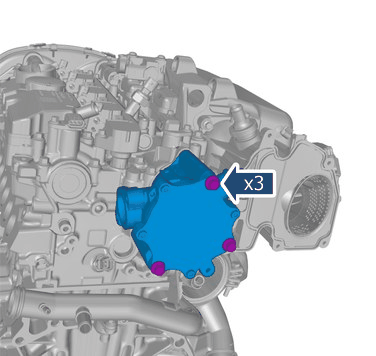

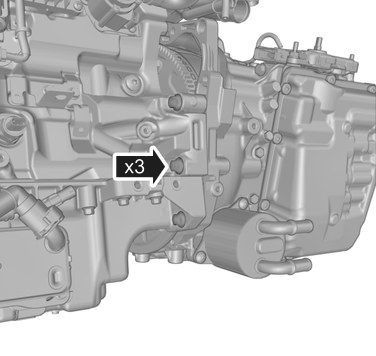

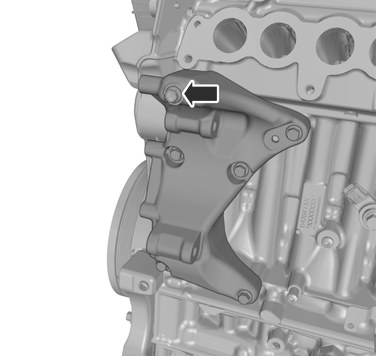

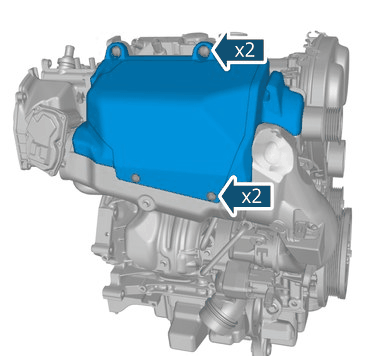

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

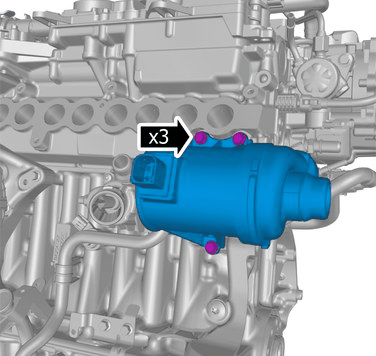

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

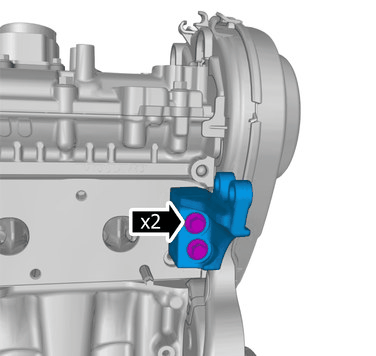

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

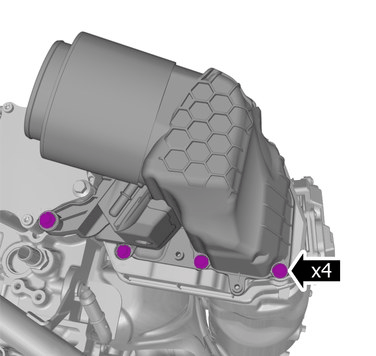

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: M6, 10Nm

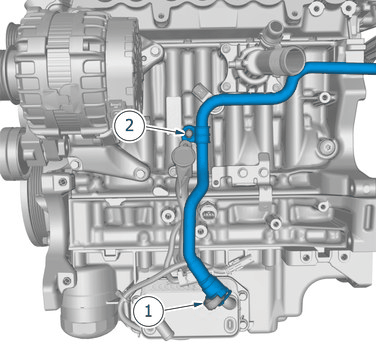

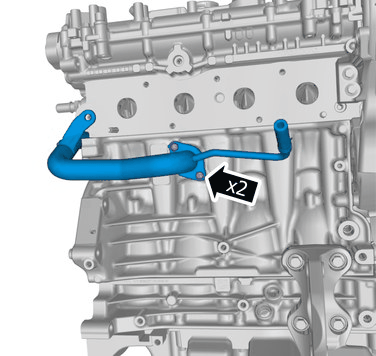

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

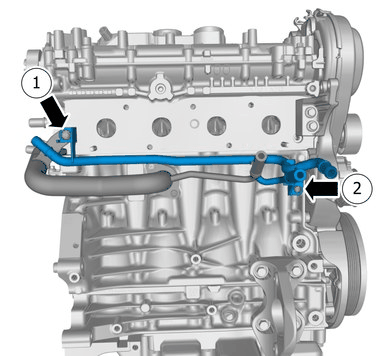

Install the following items:

Torque: M8, 24Nm
Torque: M6, 10Nm

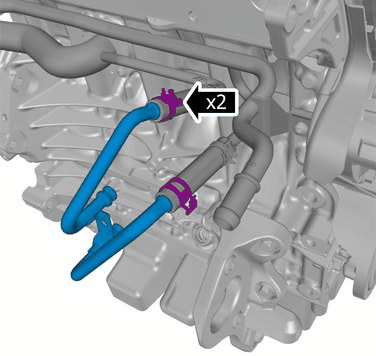

Courtesy of VOLVO CARS CORPORATION

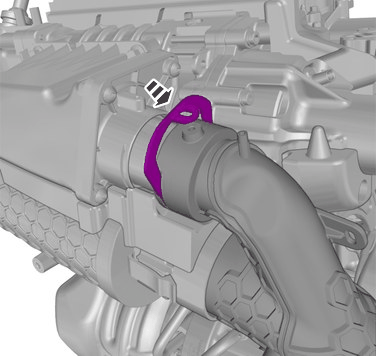

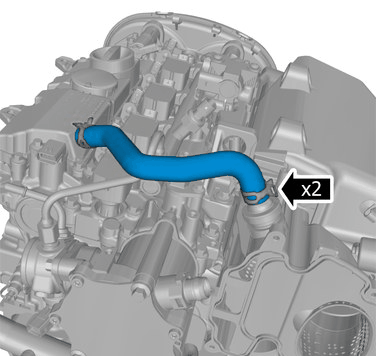

Tighten the hose clamps.

Courtesy of VOLVO CARS CORPORATION

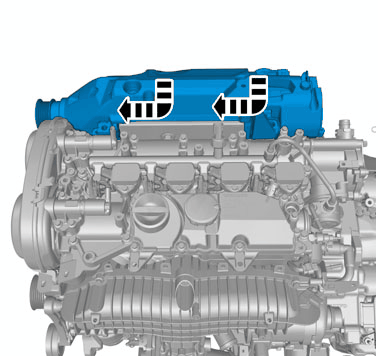

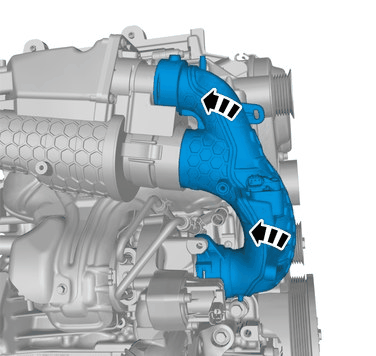

CAUTION:

Make sure that the gaskets are correctly located.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

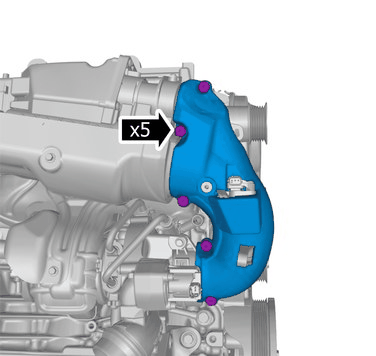

Courtesy of VOLVO CARS CORPORATION

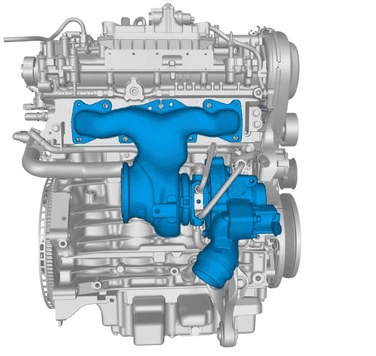

Install the following items:

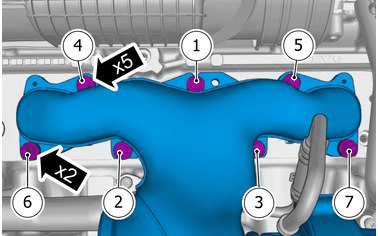

Torque: Exhaust manifold to cylinder head, nut
- Stage 1: 20Nm
- Stage 2: 20Nm
Torque: Exhaust manifold to cylinder head, bolt
- Stage 1: 20Nm
- Stage 2: 20Nm

Courtesy of VOLVO CARS CORPORATION

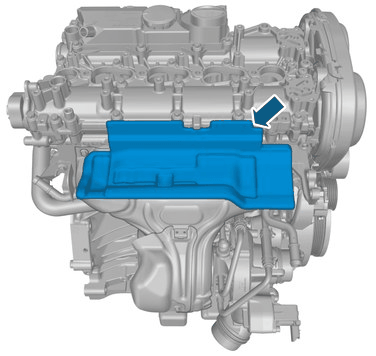

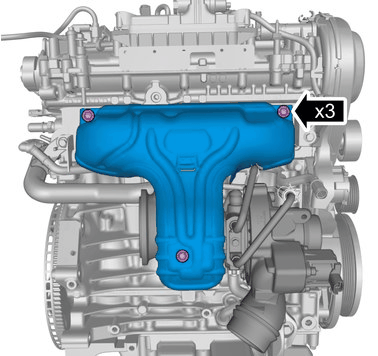

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

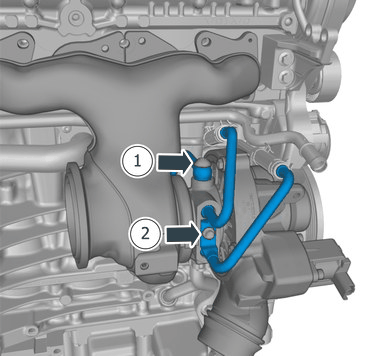

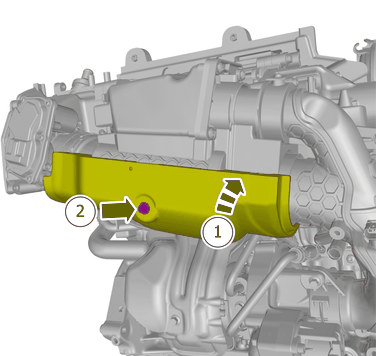

Install the following items:

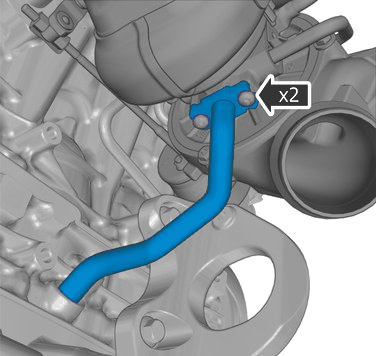

Torque: Oil pressure pipe to the turbocharger, 26Nm
Torque: M6, 10Nm

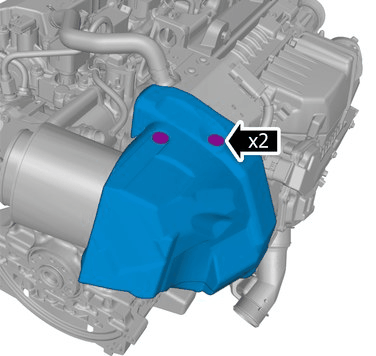

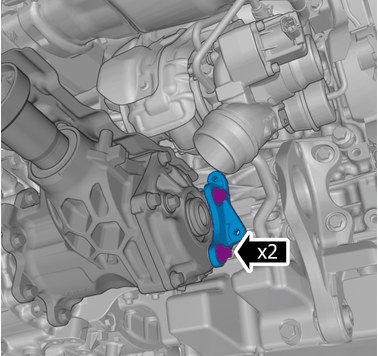

Courtesy of VOLVO CARS CORPORATION

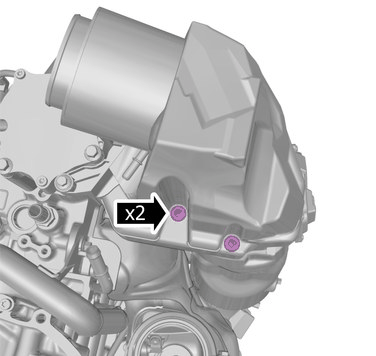

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

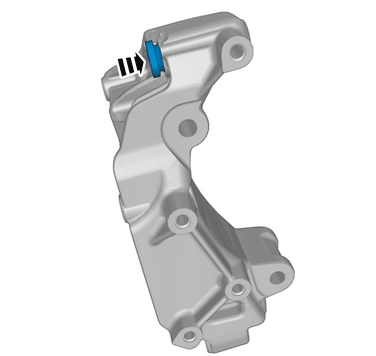

CAUTION:

Make sure that the component is correctly located on the locating dowels.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the bolts finger tight at this stage.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

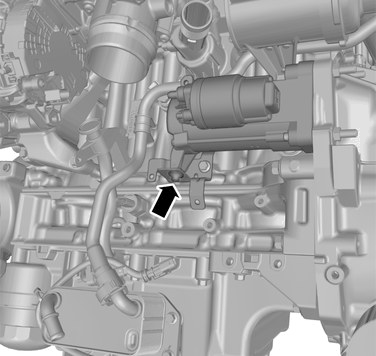

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the union nut finger tight at this stage.

NOTE:

Make sure to turn the component until stop.

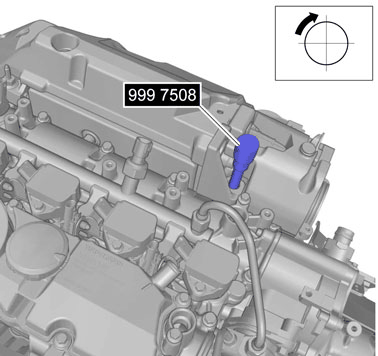

Special Tool: 999 7508 Allen key

Courtesy of VOLVO CARS CORPORATION

Remove the Special Tool.

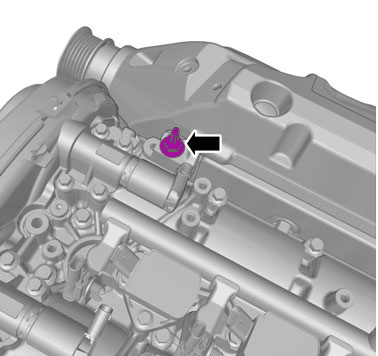

Install the screw.

Torque: M7, 17Nm

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that the component is positioned correctly.

A click confirms that the component is in the correct position.

Courtesy of VOLVO CARS CORPORATION

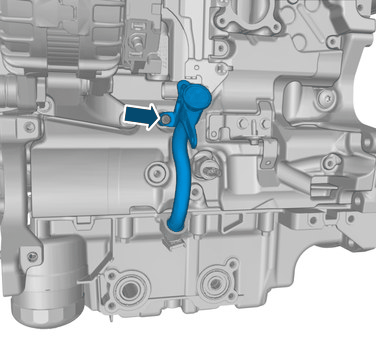

Install the screw.

Torque: M6, 10Nm

Install the clip(s).

Courtesy of VOLVO CARS CORPORATION

Depress the locking device.

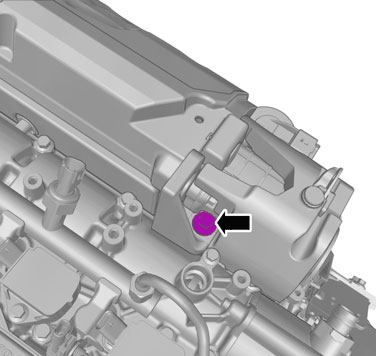

Courtesy of VOLVO CARS CORPORATION

Install the screw.

Courtesy of VOLVO CARS CORPORATION

Install the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the clip(s).

Courtesy of VOLVO CARS CORPORATION

Install the clip(s).

Install the screws.

Torque: M6, 10Nm

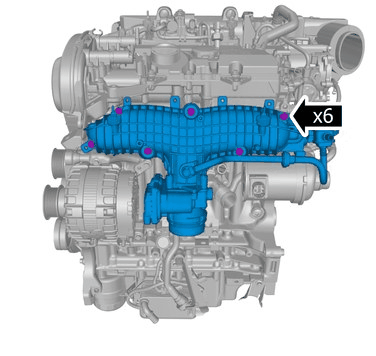

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: M6, 10Nm

Perform fuel injectors. Refer to: [FUEL INJECTOR]

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

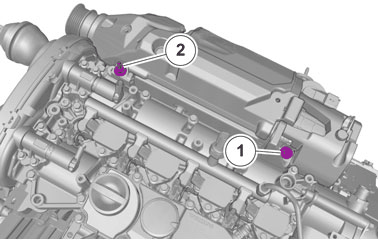

Install the screws.

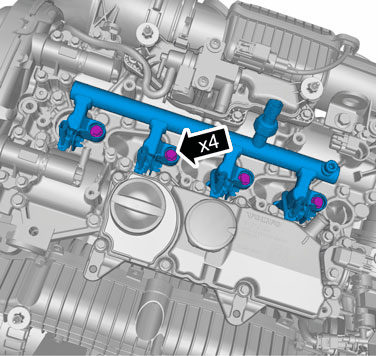

Torque: Fuel rail, 20Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M6, 10Nm

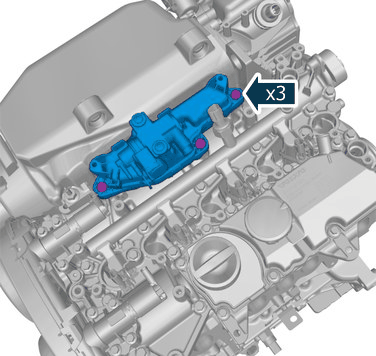

Courtesy of VOLVO CARS CORPORATION

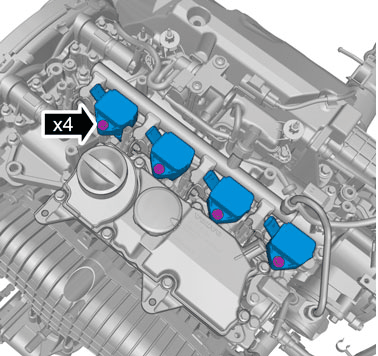

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M6, 10Nm

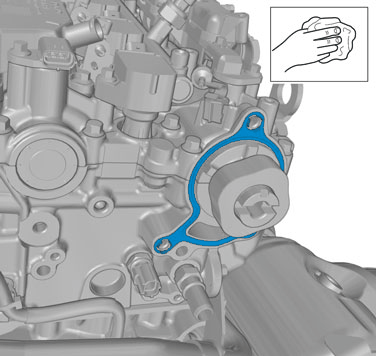

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Use lint free cloth.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Use: Isopropanol,

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

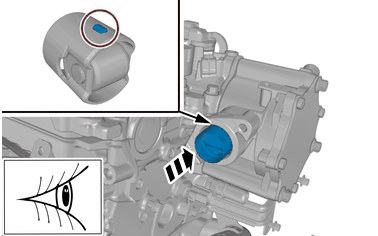

WARNING:

Make sure that the component is positioned correctly.

Use: Engine oil,

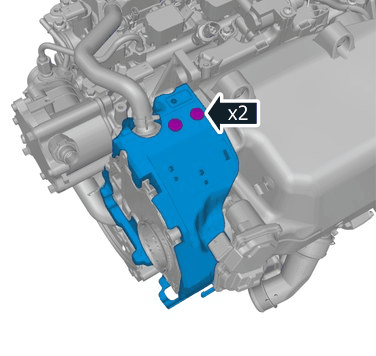

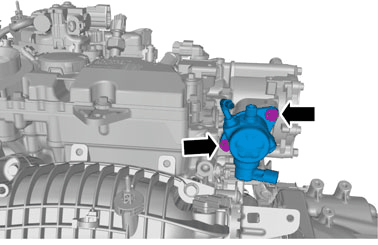

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

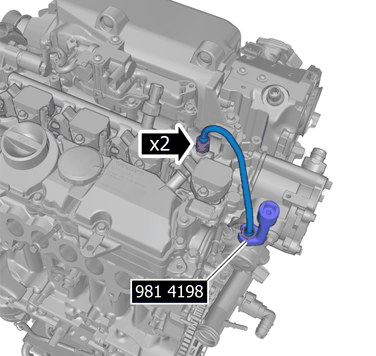

NOTE:

Make sure that a new component is installed.

Torque: High-Pressure Fuel Line to Fuel Pump

Stage 1: 12Nm
Stage 2: 25Nm

Special Tool: 981 4198 Crow foot

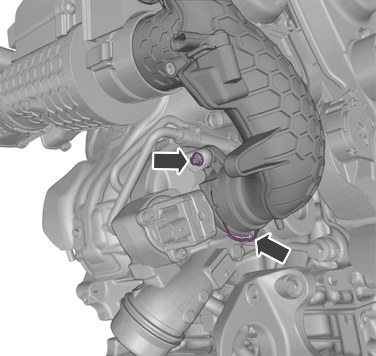

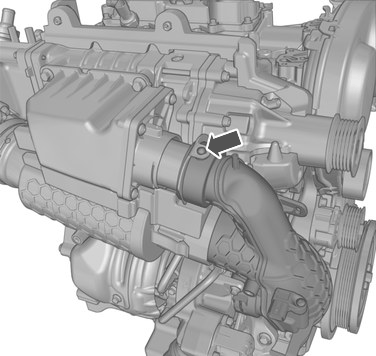

Courtesy of VOLVO CARS CORPORATION

Tighten the hose clamp.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Courtesy of VOLVO CARS CORPORATION

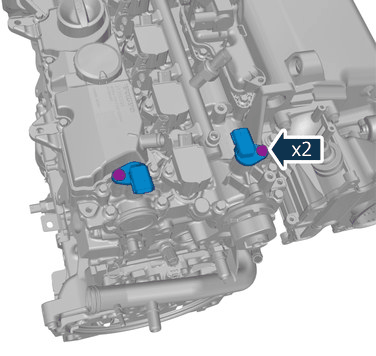

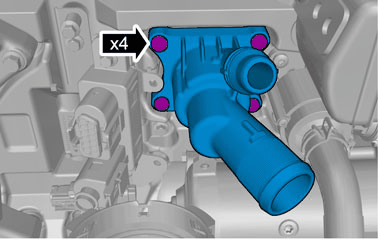

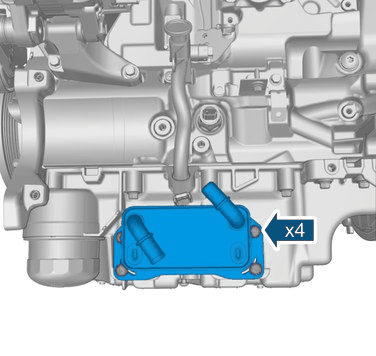

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

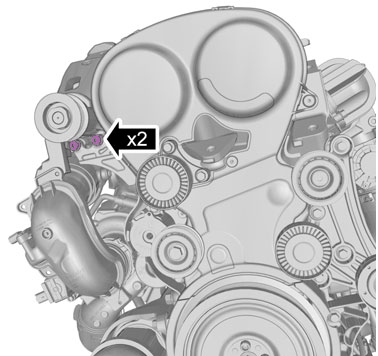

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

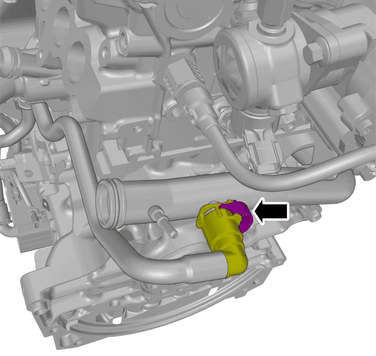

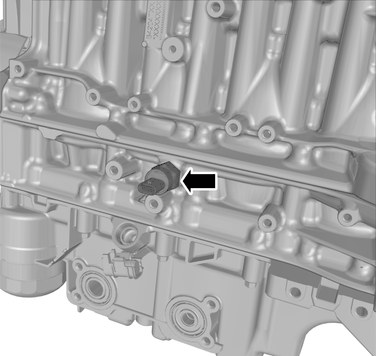

Torque: Oil pressure sensor, 15Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

Install the screw.

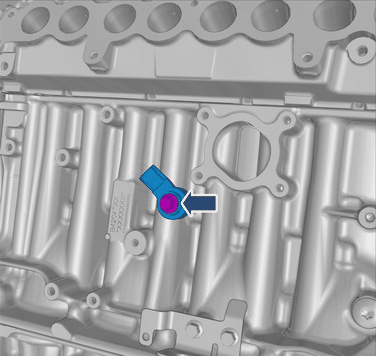

Torque: Knock sensor, 20Nm

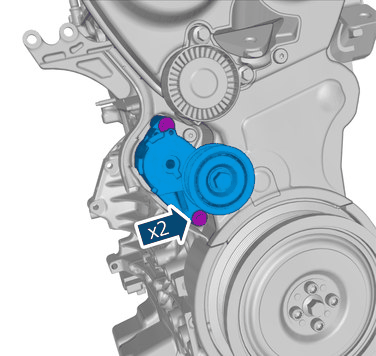

Courtesy of VOLVO CARS CORPORATION

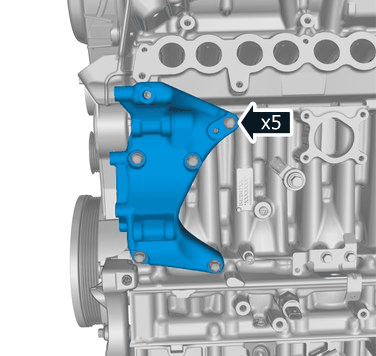

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

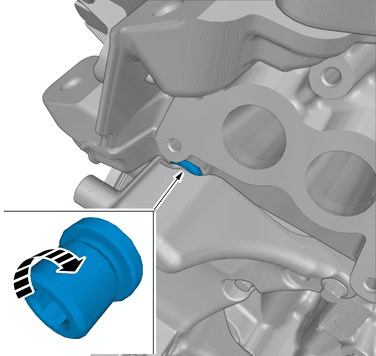

NOTE:

Make sure to turn the component until stop.

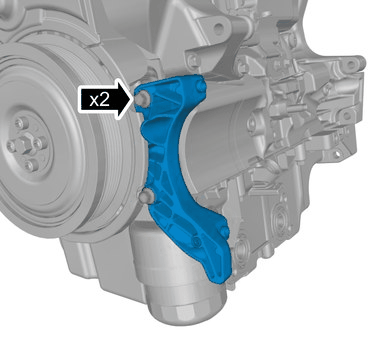

Courtesy of VOLVO CARS CORPORATION

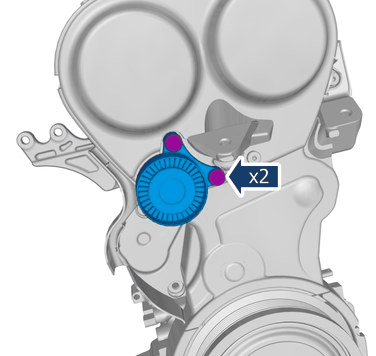

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the nut finger tight at this stage.

NOTE:

Make sure to turn the component until stop.

Courtesy of VOLVO CARS CORPORATION

Install the screw.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

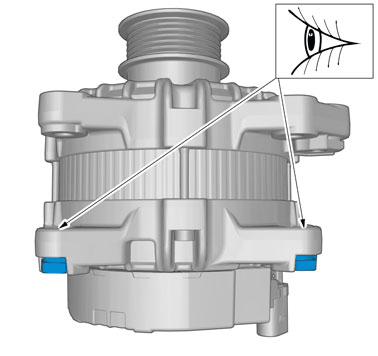

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

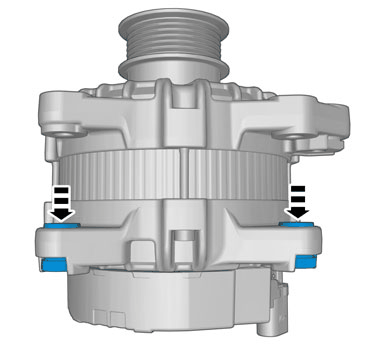

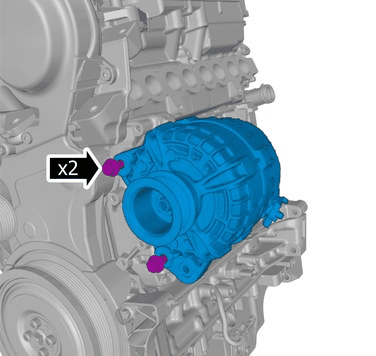

Install the screws.

Torque: Alternator to auxiliary drive bracket, 48Nm

Courtesy of VOLVO CARS CORPORATION

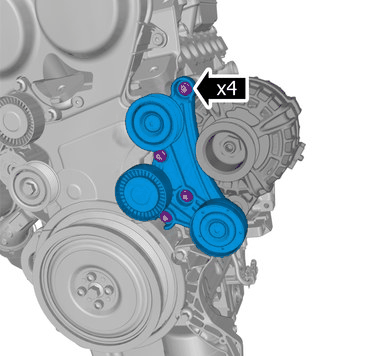

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Install the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: M7, 17Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Assemble the following items:

Depress the locking device.
Install the screw.
Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the hose.

Depress the locking device.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

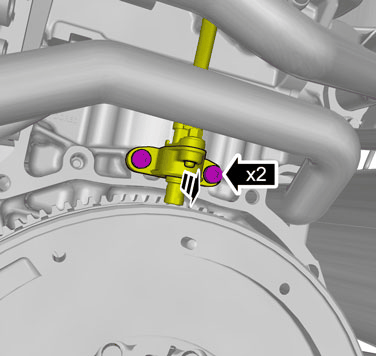

Remove the Special Tool.

Install carrier plate. Refer to: [CARRIER PLATE]

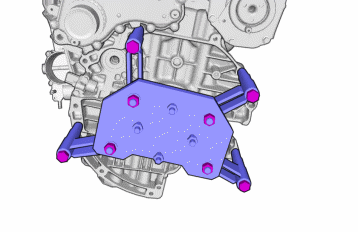

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M7, 17Nm

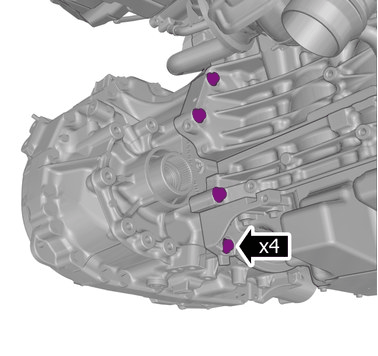

Courtesy of VOLVO CARS CORPORATION

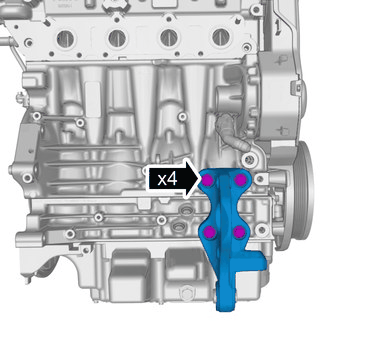

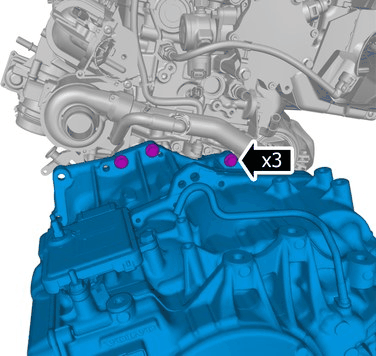

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Install the nuts

Torque: Torque converter, to Flexplate, 60Nm

Turn the engine

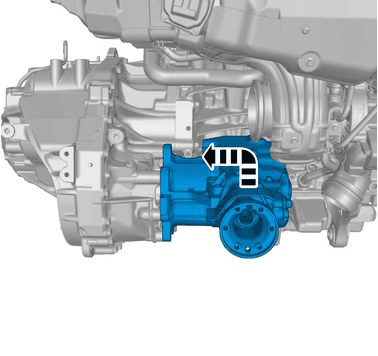

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the bolts finger tight at this stage.

Install the marked component.

Install the screws.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

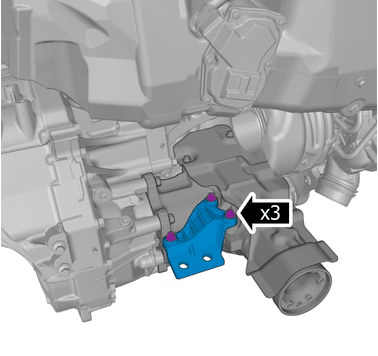

Install the marked component.

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

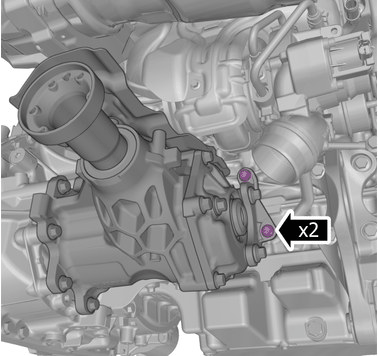

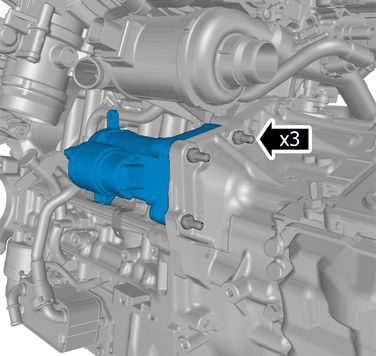

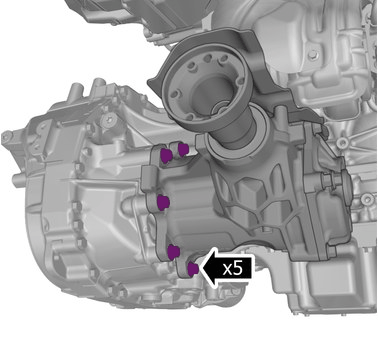

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Install the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

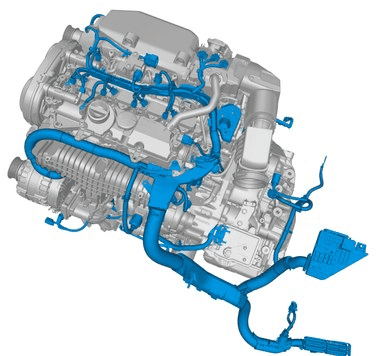

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.
