Engine Block, Installing Components [2021, B420T, AWF8G55 AWD]: Installation

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M8, 24Nm
Torque: M6, 10Nm

Replace seal. Refer to: [FUEL INJECTOR]

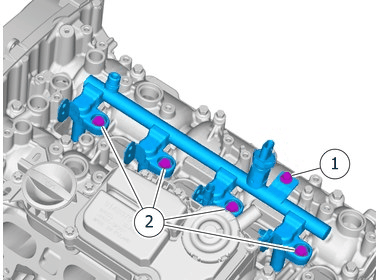

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10Nm
Torque: Fuel rail, 22Nm

Install the following items:

ignition coil. Refer to: [IGNITION COIL]
actuator, sliding camshaft exhaust. Refer to: [CYLINDER DEACTIVATION ACTUATOR, EXHAUST]
actuator, sliding camshaft intake. Refer to: [CYLINDER DEACTIVATION ACTUATOR, INLET]
camshaft position sensor, exhaust side. Refer to: [CAMSHAFT POSITION SENSOR, EXHAUST SIDE]
camshaft position sensor, inlet side. Refer to: [CAMSHAFT POSITION SENSOR, INLET SIDE]
VVT solenoid. Refer to: [VVT SOLENOID]

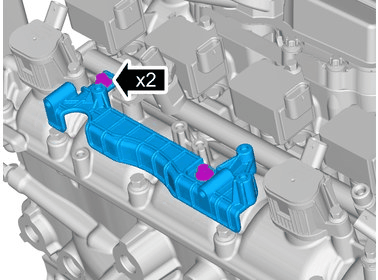

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

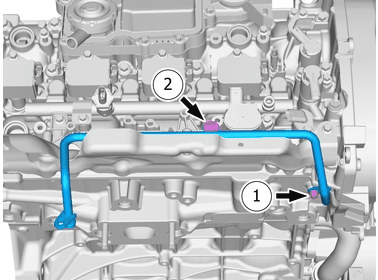

Install the screws.

Torque: M6, 10Nm
Torque: M7, 17Nm

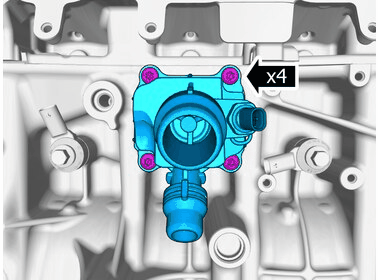

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use new seals.

Install the marked component.

Install the screws.

Torque: M6, 10Nm

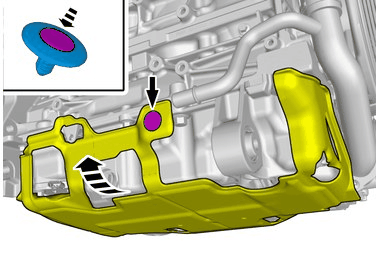

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the clip(s).

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the clip(s).

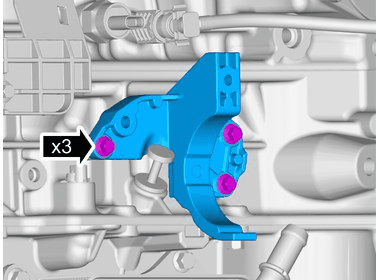

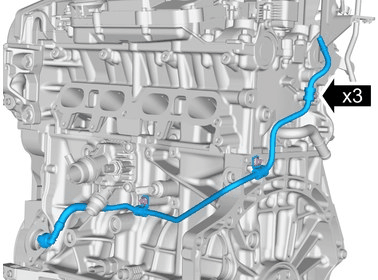

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10Nm

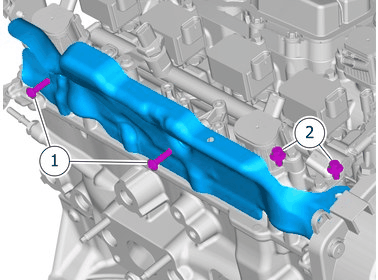

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M5, 5Nm
Torque: M6, 10Nm

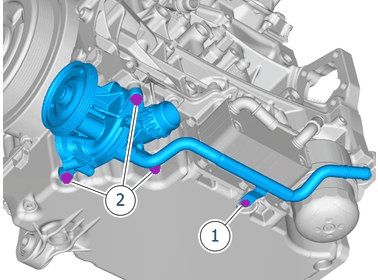

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use new seals.

Install the marked component.

Install the screws.

Torque: M6, 10Nm
Torque: M5, 5Nm

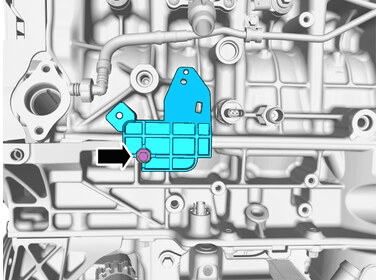

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the nut.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm

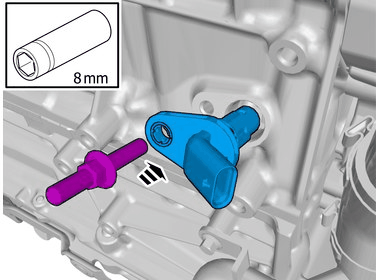

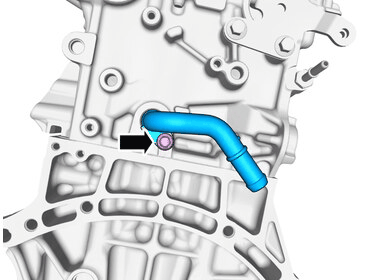

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Install the marked component.

Install the screw.

Torque: M6, 10Nm

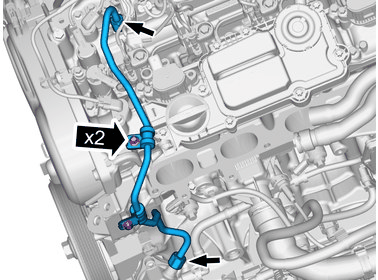

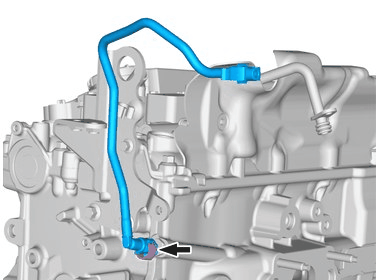

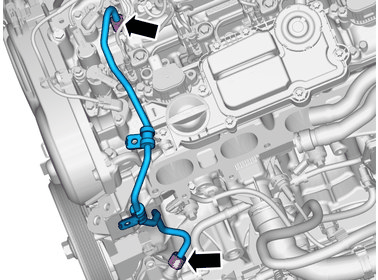

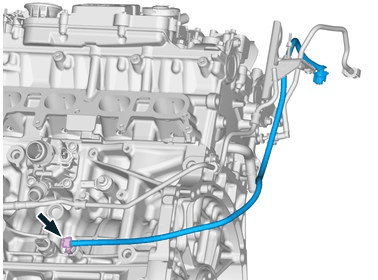

Courtesy of VOLVO CARS CORPORATION

NOTE:

A click confirms that the component is in the correct position.

Install the hose.

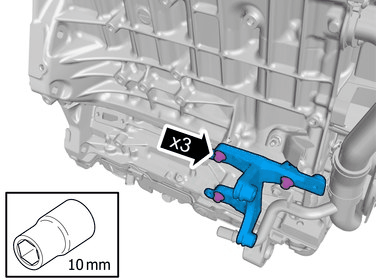

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

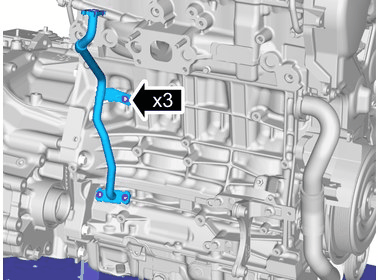

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10Nm

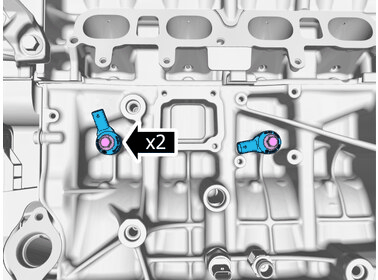

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components are positioned correctly.

Install the marked components.

Install the screws.

Torque: Knock sensor, 20Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

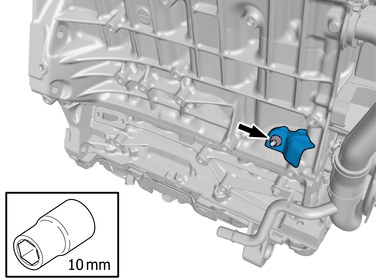

Install the marked component.

Install the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

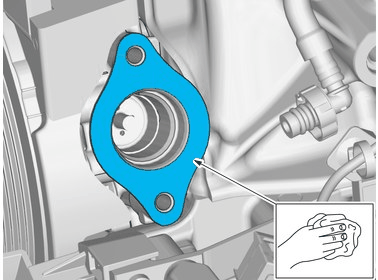

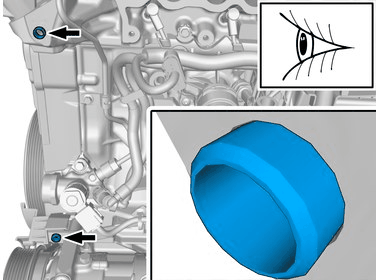

Clean the surface.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Check the component. If it displays any type of damage, it must be replaced.

Check the surfaces for abrasion.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components are positioned correctly.

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

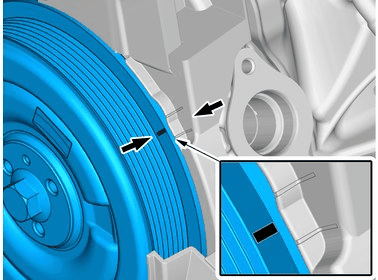

NOTE:

Make sure that the installation marks are aligned.

If necessary

Turn the engine

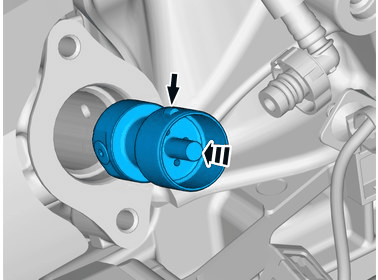

Courtesy of VOLVO CARS CORPORATION

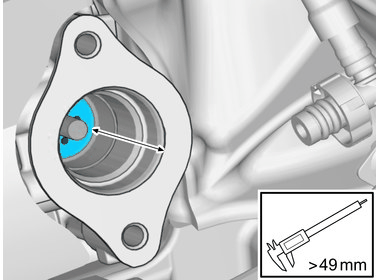

Measure

Use: Vernier caliper

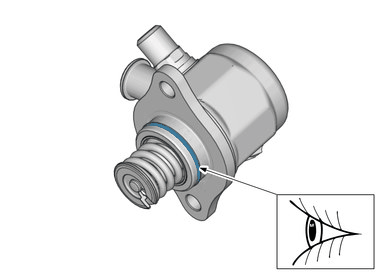

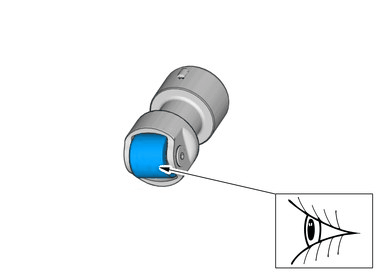

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Check the component. If it displays any type of damage, it must be replaced.

CAUTION:

Make sure that the seal remains correctly located.

NOTE:

Use a new seal.

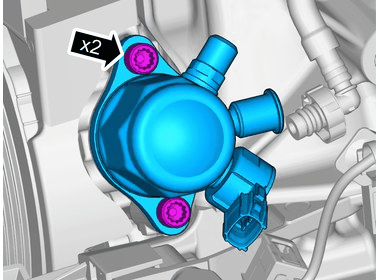

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Use hands only.

Tighten each bolt 1 turn at a time.

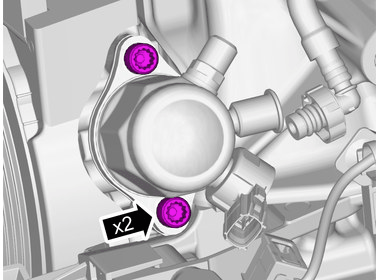

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

Torque: Injection pump, 30Nm

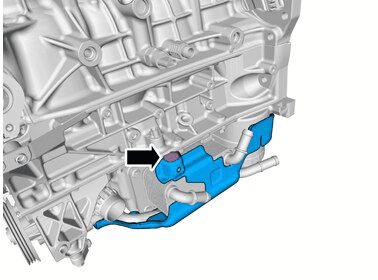

Courtesy of VOLVO CARS CORPORATION

NOTE:

A click confirms that the component is in the correct position.

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the nuts finger tight at this stage.

Install the marked component.

Make sure to replace the marked component with a new.

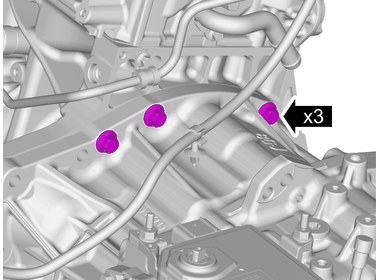

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

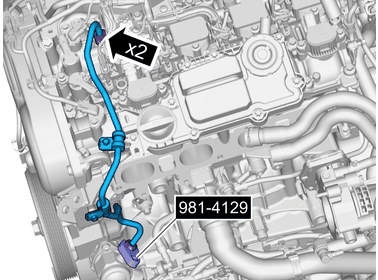

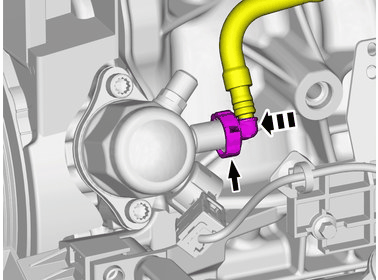

Tighten the nuts.

Torque: High pressure fuel line

Stage 1: 18Nm
Stage 2: 30Nm

Special Tool: 981 4129 Hook wrench

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component is installed.

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm
Torque: M10, 50Nm

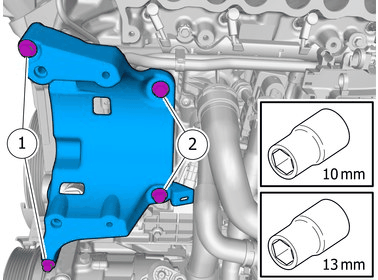

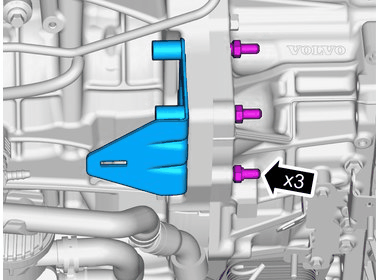

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm

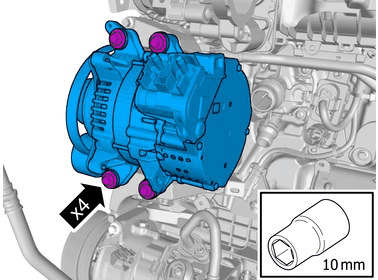

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm

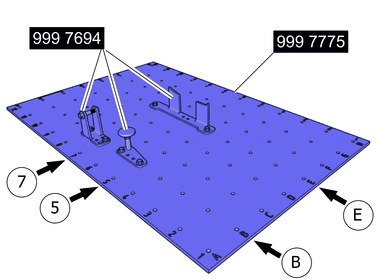

Courtesy of VOLVO CARS CORPORATION

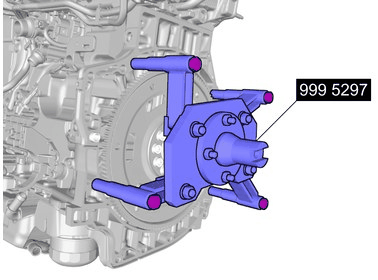

Remove the Special Tool.

Courtesy of VOLVO CARS CORPORATION

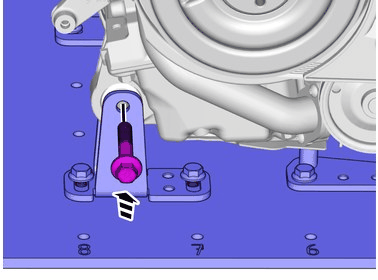

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the component is positioned correctly.

Install the screw.

Torque: M12, 80Nm

Courtesy of VOLVO CARS CORPORATION

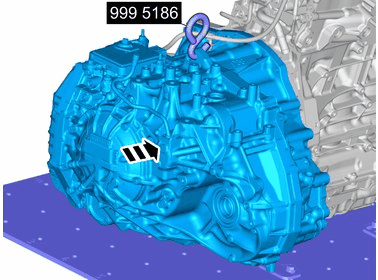

CAUTION:

Make sure that the torque converter is kept in place when installed, to avoid the transmission getting damaged.

Install the marked component.

Special Tool: 999 5186 HOOK

Use: Engine lift

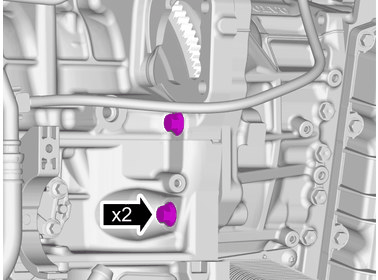

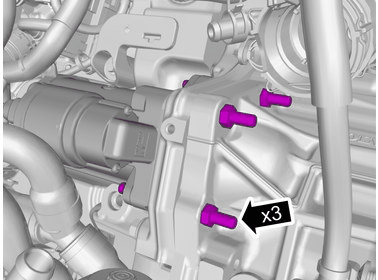

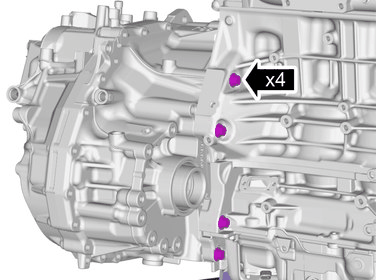

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

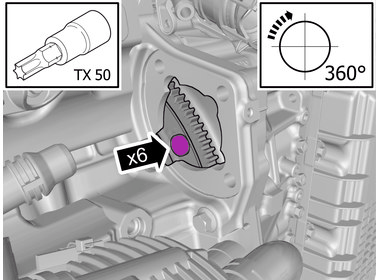

Install the screws.

Turn the engine

Torque: Torque converter, to Flexplate, 60Nm

VEHICLES EARLY VERSION

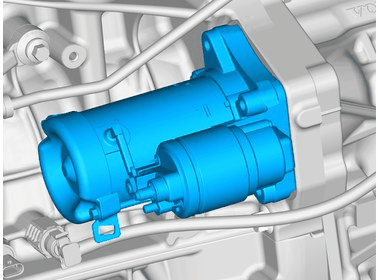

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: Starter motor, 50Nm

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: Starter motor cover, 40Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50Nm

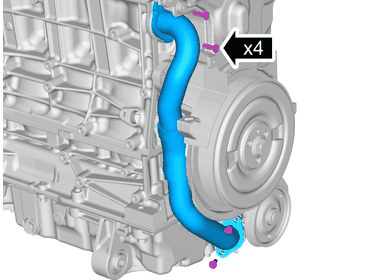

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use new seals.

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

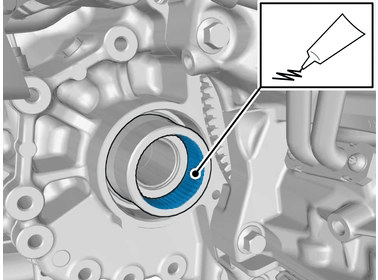

Use: Splines grease, 1161748

Courtesy of VOLVO CARS CORPORATION

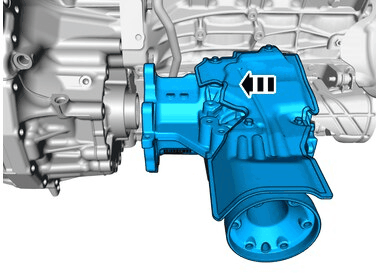

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Install all the bolts finger tight before final tightening.

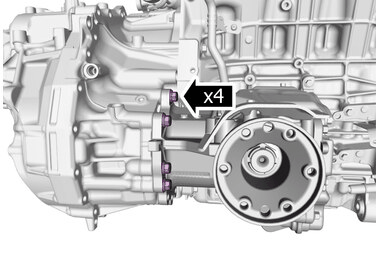

Install the screws.

Torque: Bevel gear to transmission, 75Nm

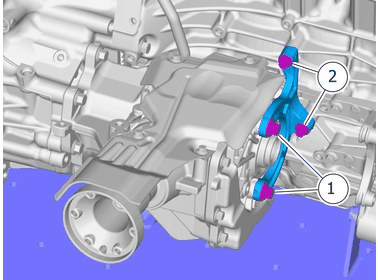

Courtesy of VOLVO CARS CORPORATION

NOTE:

Install all the bolts finger tight before final tightening.

Install the marked component.

Install the screws.

Torque: Bracket, to Bevel gear housing
- Stage 1: 50Nm
- Stage 2: 120°
Torque: Console to engine
- Stage 1: 18Nm
- Stage 2: 90°

Install the following items:

electric charge air compressor. Refer to: [ELECTRIC CHARGE AIR COMPRESSOR]
the intake manifold. Refer to: [INDUCTION PIPE]
turbocharger. Refer to: [TURBOCHARGER]
the catalytic converter. Refer to: [CATALYTIC CONVERTER]
Charge air cooler. Refer to: [CHARGE AIR COOLER]
water pump belt. Refer to: [WATER PUMP BELT]

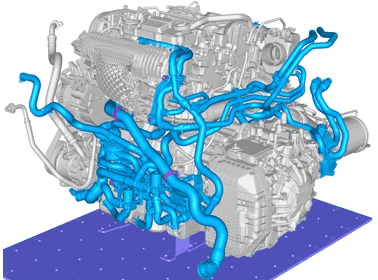

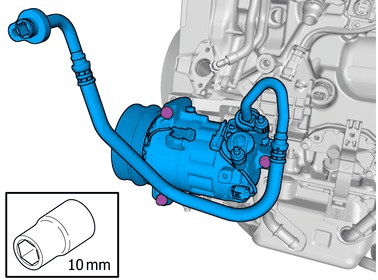

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components are positioned correctly.

Install the hoses.

Tighten the hose clamps.

Install the screws.

Torque: M6, 10Nm
Torque: M8, 24Nm

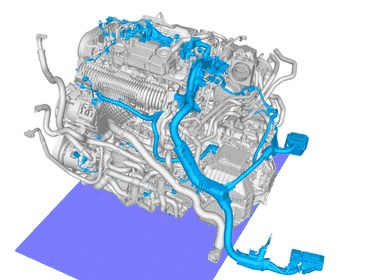

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the wire positions are correct.

Install the marked component.

Connect the connectors.

Install the screws.

Torque: M6, 10Nm
Torque: M8, 24Nm
Torque: Starter motor B+ terminal, 11Nm
Torque: Start impulse lead, 6.5Nm

Install the engine. Refer to: [ENGINE]
