Scissor Lift
Location
When the scissor lift is used, the lifting surface must be rubber coated.
Use an underlay.

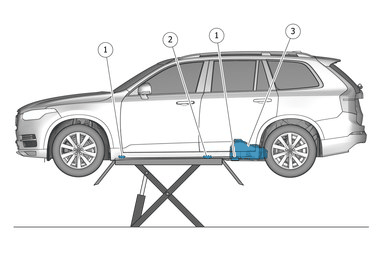

The image shows how the lifting surface is to be positioned so as not to damage the fuel tank.
NOTE:
To prevent damaging the fuel tank, position the lifting surface in front of the fuel tank.
- Standard jacking points
- Support jacking points
- Fuel tank
